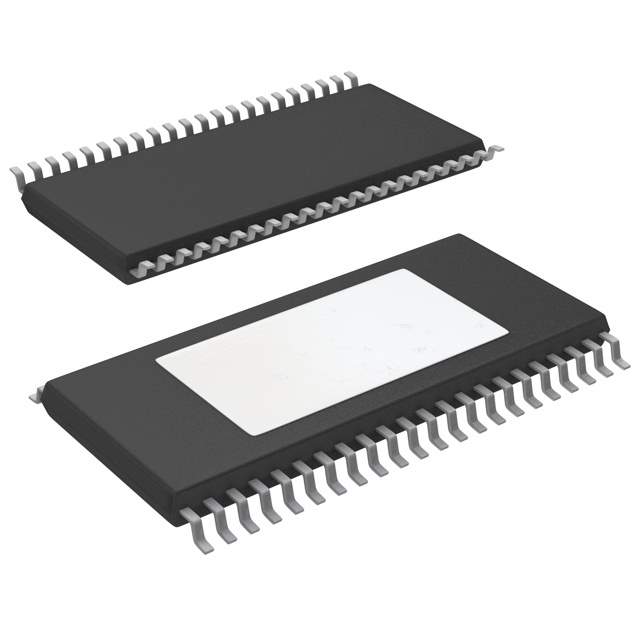

Introducing the TPA3245DDV from Texas Instruments

The TPA3245DDV is a high-performance, class-D power amplifier that stands out for its efficiency and audio fidelity. Manufactured by the renowned Texas Instruments, this advanced audio solution is designed to cater to a wide range of applications, from home theater systems to professional audio equipment.

Key Features

• High-Efficiency Class-D Operation: With its class-D architecture, the TPA3245DDV delivers powerful audio performance while maintaining high efficiency, which reduces energy consumption and heat dissipation.
• Advanced Modulation Schemes: The device supports multiple modulation schemes, including 1SPW, 2SPW, and AD modulation, which allows for flexible design choices to achieve the best sound quality and efficiency for the application at hand.
• Wide Voltage Range: The TPA3245DDV operates over a broad supply voltage range from 4.5V to 26.4V, making it versatile for use in various power environments.
• Integrated Feedback: The amplifier incorporates an integrated feedback design that minimizes the number of external components required, simplifying the circuit design and reducing the overall system cost.
• High Output Power: Capable of delivering up to 70W into 4 ohms or 35W into 8 ohms per channel in stereo mode, and up to 150W into 8 ohms in mono-parallel mode, this amplifier can power a wide range of speakers.

Advanced Protection

The TPA3245DDV is equipped with a suite of protection features to ensure reliable operation under various conditions. These include over-current protection, thermal protection, and under-voltage protection. These safeguards help to prevent damage to the amplifier and the speakers, thereby enhancing the longevity of the entire audio system.

Application Versatility

With its impressive audio performance and robust feature set, the TPA3245DDV is perfectly suited for a variety of applications, including:

• Active speakers and soundbars
• Residential and commercial audio systems
• Professional audio equipment
• AV receivers and home theater systems

Whether you're designing a compact home audio solution or a powerful commercial audio setup, the TPA3245DDV offers the performance, efficiency, and reliability to meet your needs.
