The TPD2E2U06QDCKRQ1 is an advanced, dual-channel Electrostatic Discharge (ESD) protection device manufactured by Texas Instruments. This component is specifically designed to safeguard high-speed interfaces like USB 2.0, HDMI, and other vulnerable circuits from the damaging effects of ESD and other transient voltage events. Its compact form factor and high level of protection make it an ideal choice for a wide range of applications in modern electronics.

Key Features

• ESD Protection: Provides robust ESD protection up to ±15kV (IEC 61000-4-2), ensuring the safety of sensitive components from electrostatic discharges.
• Low Capacitance: Features ultra-low capacitance (0.5 pF typ.) which minimizes signal degradation, making it suitable for high-speed data lines without compromising signal integrity.
• Low Leakage: Exhibits low leakage current, thereby enhancing the overall power efficiency of the system and reducing power consumption.
• Bi-Directional Interface Protection: Capable of protecting one bidirectional data line or two unidirectional lines, offering design flexibility and simplified inventory management.

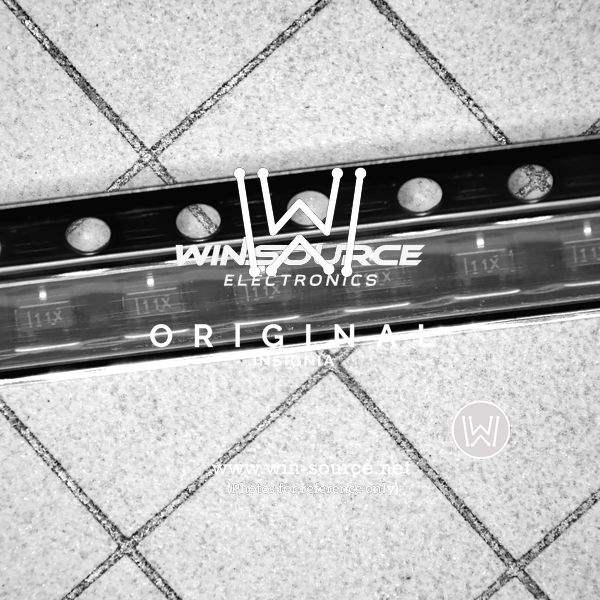

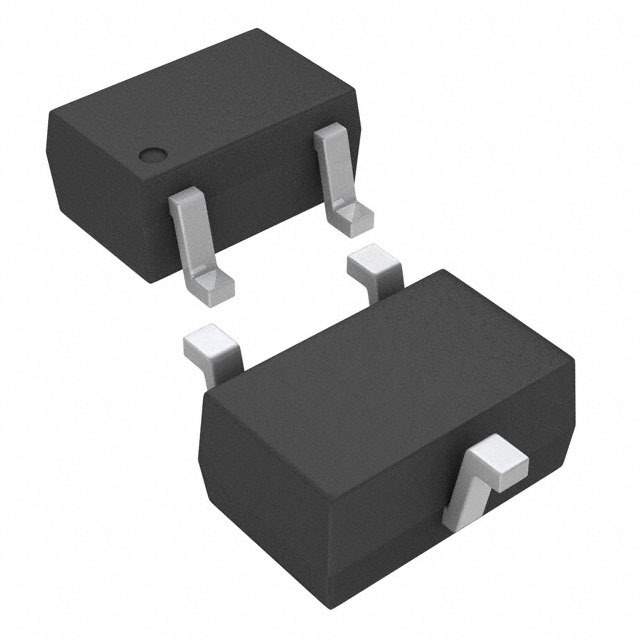

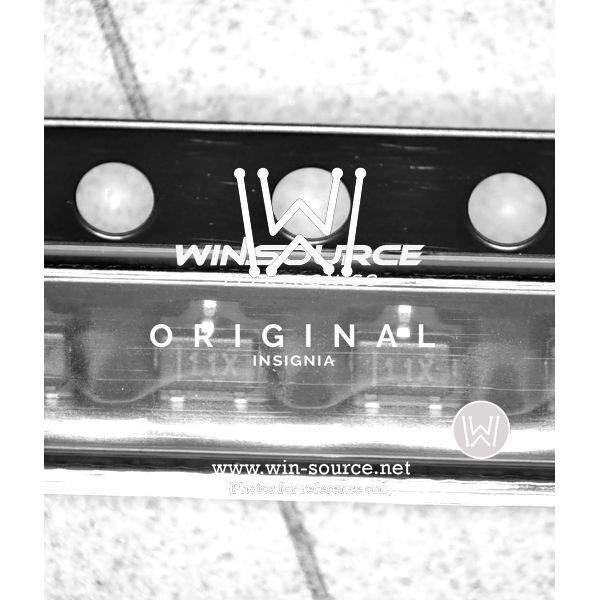

• Small Package Size: Comes in a small SC-70 (SOT-323) package, making it a space-saving solution for densely packed circuit boards.
• Wide Operating Range: Operates over a wide temperature range of -40°C to +125°C, suitable for various environmental conditions.

Applications

The TPD2E2U06QDCKRQ1 is widely used in protecting interfaces across different sectors, including:

• Consumer Electronics (Smartphones, Tablets, PCs)
• Portable Electronics
• USB Peripherals and Accessories
• Audio/Video Inputs
• Serial Interfaces

With its impressive ESD protection capabilities and low-capacitance design, the TPD2E2U06QDCKRQ1 is an essential component for designers looking to enhance the durability and longevity of their electronic products. Texas Instruments' commitment to quality and performance is evident in this device, which stands as a testament to their leadership in semiconductor solutions.
