The TPD6F202YFUR from Texas Instruments is a state-of-the-art ESD (Electrostatic Discharge) protection device, meticulously designed to safeguard sensitive electronic components against electrostatic shocks. This compact and efficient solution is an indispensable asset in modern electronics where high-speed data lines and interfaces are susceptible to damage from ESD events.

Key Features

• Multi-Channel Protection: The TPD6F202YFUR provides six channels of ESD protection, ensuring comprehensive coverage for multiple data lines in a single package.
• High-Speed Data Line Integrity: Designed to support high-speed interfaces without compromising signal integrity, this device is ideal for protecting USB 3.0, HDMI, DisplayPort, and Thunderbolt interfaces.
• Low Capacitance: With a low loading capacitance of 0.5 pF (typical) per I/O, the TPD6F202YFUR minimizes signal attenuation, making it suitable for high-frequency applications.
• IEC Compliance: This device meets IEC 61000-4-2 (Level 4) ESD protection standards, providing peace of mind with a robust defense against ESD strikes up to ±8 kV (contact discharge) and ±15 kV (air discharge).

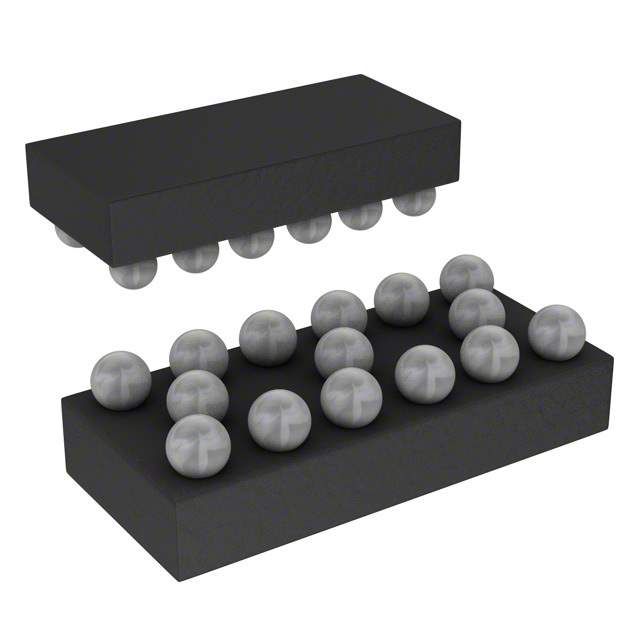

• Ultra-Slim Package: The TPD6F202YFUR comes in a space-saving DSBGA package, which is highly beneficial for portable and space-constrained applications.

Applications

The TPD6F202YFUR is versatile and can be employed in a wide array of applications, including but not limited to:

• Smartphones, Tablets, and Portable Electronics
• Computers and Peripherals
• High-Speed Data Line Interfaces
• Consumer Electronics
• Networking and Telecommunications Equipment

Technical Specifications

• Channels: 6
• Clamping Voltage: Low
• ESD Protection Voltage: ±8 kV Contact, ±15 kV Air
• Package / Case: DSBGA-10
• Operating Temperature Range: -40°C to +85°C

With its blend of performance, compact form factor, and reliability, the TPD6F202YFUR by Texas Instruments is the go-to choice for designers looking to enhance the ESD resilience of their high-speed digital interfaces.
