Introducing the TPS22907YZTR from Texas Instruments

The TPS22907YZTR is a state-of-the-art power management integrated circuit designed and manufactured by Texas Instruments, a leader in semiconductor solutions. This compact, high-efficiency device is an ideal choice for a wide range of applications, including portable electronics, wearables, and IoT devices where power conservation and space constraints are critical considerations.

Key Features:

• Low On-Resistance: The TPS22907YZTR boasts an ultra-low on-resistance (R<sub>ON) of just 58 mΩ at a 5V gate drive. This feature significantly reduces power loss and improves overall efficiency, making it an excellent choice for battery-powered applications.
• Input Voltage Range: The device operates over a broad input voltage range from 1.5V to 5.5V, accommodating a variety of power sources and ensuring compatibility with numerous system architectures.
• Low Quiescent Current: With a quiescent current of only 0.5µA (typical), the TPS22907YZTR minimizes power consumption when in standby mode, thereby extending battery life in portable applications.
• Fast Switching: The load switch provides fast switching times, with a typical turn-on time of 35 µs, allowing for quick response to system power demands.
• Controlled Slew Rate: The device features a controlled slew rate to help mitigate inrush current, which is particularly beneficial in preventing voltage drops and system instability during power-up sequences.

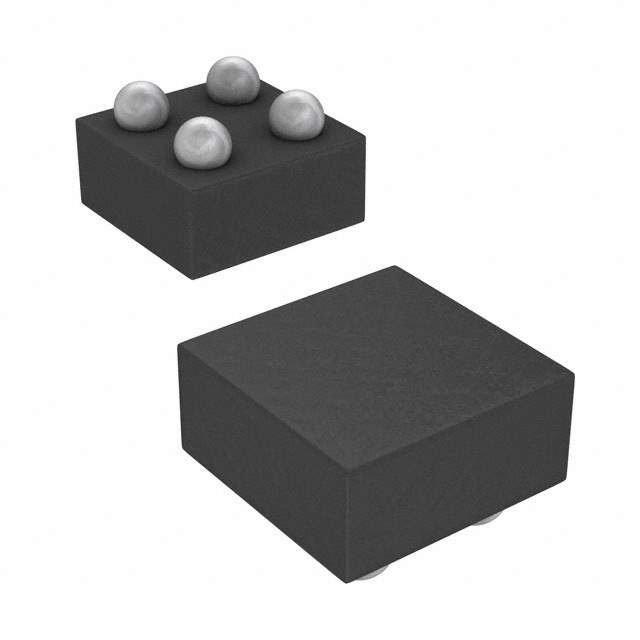

• Small Package Size: Housed in a compact 1.5mm x 1.5mm 6-pin YZP package, the TPS22907YZTR is designed for space-constrained applications, enabling designers to maximize board space without sacrificing performance.

Applications:

The versatility of the TPS22907YZTR makes it suitable for a wide range of applications, including but not limited to:

• Smartphones and Tablets
• Wearable Technology
• Wireless Headsets and Earbuds
• Portable Medical Devices
• IoT Devices
• Energy Harvesting Systems

With its robust feature set and Texas Instruments' commitment to quality, the TPS22907YZTR is an excellent choice for designers looking to enhance power management in their next-generation electronic products. Its balance of power efficiency, small form factor, and versatility make it a top contender in the field of power management solutions.
