Product Overview: TPS22968DPUT by Texas Instruments

The TPS22968DPUT is a high-performance, feature-rich integrated circuit designed by Texas Instruments, one of the leading manufacturers in the semiconductor industry. This component is part of the TPS22968 series and is specifically tailored for power management applications that demand compactness and efficiency.

Key Features:

• Ultra-Low On-Resistance: The TPS22968DPUT boasts an ultra-low on-resistance (R<sub>ON) which significantly reduces power loss and improves overall efficiency in power distribution systems.
• Input Voltage Range: It operates over a wide input voltage range from 1.5V to 5.5V, making it versatile for various applications from battery-powered devices to industrial systems.
• Dual-Channel Load Switch: The device integrates two N-channel MOSFET load switches, providing independent control for two separate power rails with a single compact package.
• Adjustable Rise Time: With an externally adjustable rise time, the TPS22968DPUT allows designers to minimize inrush current, thereby reducing noise and potential disturbances in sensitive circuits.
• Quick Output Discharge: An integrated quick output discharge feature ensures that the load is discharged rapidly when the switch is turned off, which is critical for safety and power management in many electronic systems.

Applications:

The versatility of the TPS22968DPUT makes it ideal for a wide range of applications, including:

• Smartphones and Tablets
• Portable and Battery-Powered Devices
• Networking Equipment
• Industrial and Automotive Systems
• Power Management Modules

Package and Reliability:

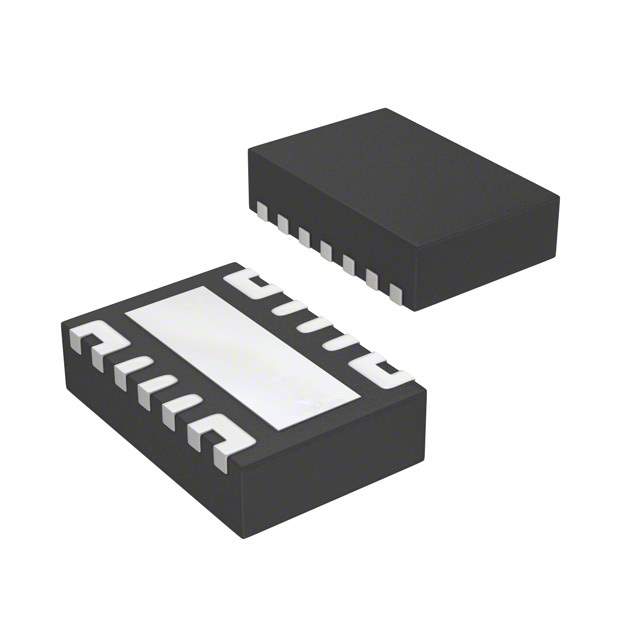

Housed in a compact 3.00 mm × 3.00 mm, 14-pin HotRod™ QFN package, the TPS22968DPUT minimizes board space while providing robust protection features. These include over-temperature and under-voltage lockout, ensuring reliable operation under adverse conditions.

Conclusion:

With its combination of high efficiency, flexibility, and protection features, the TPS22968DPUT from Texas Instruments is an excellent choice for designers looking to optimize power management in their next-generation electronic products.
