The TPS53659RSBT is a state-of-the-art, multi-phase synchronous buck controller designed by Texas Instruments (TI). This component is engineered to provide high-efficiency, fast-transient response, and robust power management solutions for computing and telecommunication applications.

Key Features

• Multi-Phase Power Solution: The TPS53659RSBT utilizes a multi-phase configuration that helps to reduce the current per phase, leading to the use of smaller and lower-cost inductors and capacitors while maintaining high performance.
• D-CAP+™ Architecture: TI's proprietary D-CAP+™ control architecture offers fast transient response, simplifying the design and reducing component count.
• Energy Efficient: High-efficiency levels are achieved through features such as integrated MOSFET drivers and adaptive on-time control, which help in reducing power loss and improving total system efficiency.
• Flexible Power Stages: The controller is compatible with TI's NexFET™ power stages, providing designers with flexibility in selecting the appropriate power stage for their specific application needs.
• Smart Power Stage Interface: An interface to TI's smart power stages enables precise current monitoring and temperature sensing, further enhancing system protection and reliability.

Applications

The TPS53659RSBT is ideal for use in various high-performance applications, including:

• High-density servers
• Networking and telecommunication equipment
• High-performance computing systems
• Graphics and video cards

Technical Specifications

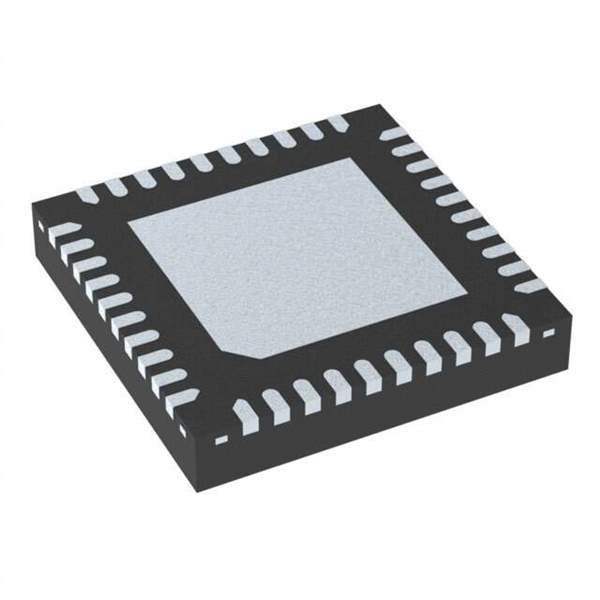

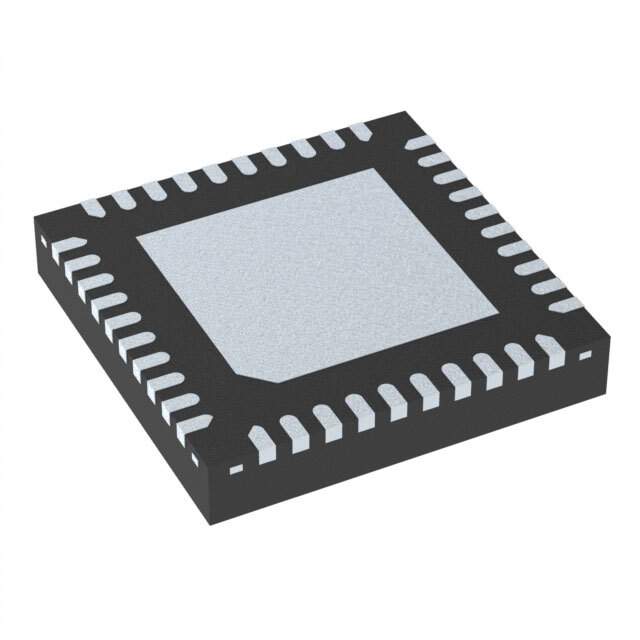

With an operating input voltage range of 4.5V to 18V, the TPS53659RSBT can support a wide range of power sources. It is designed to drive N-channel MOSFETs and supports a switching frequency range from 250kHz to 2MHz, which can be adjusted to optimize performance and component size. The package is a thermally enhanced 40-pin RSBT, which provides a compact footprint while ensuring efficient heat dissipation.

For detailed technical specifications, application notes, and support tools, visit the Texas Instruments website or contact their support team for comprehensive guidance on integrating the TPS53659RSBT into your power management designs.
