Introducing the TPS54325PWP from Texas Instruments

The TPS54325PWP is a high-performance, adaptive on-time D-CAP2™ mode synchronous buck converter from the renowned semiconductor manufacturer Texas Instruments. This advanced power management IC is designed to provide a fast transient response, excellent line and load regulation, and is aimed at a variety of applications ranging from consumer electronics to on-board power supplies in systems.

With an input voltage range of 4.5V to 18V, the TPS54325PWP is versatile and capable of handling a wide array of power supply needs. It supports an output current of up to 3A, making it suitable for powering core voltages of modern CPUs, GPUs, and other ICs that require a stable and efficient power supply.

One of the standout features of the TPS54325PWP is its D-CAP2™ control mode, which offers a very low output voltage ripple and is optimized for ceramic output capacitors without the need for external compensation. This not only simplifies the design process but also helps reduce the overall component count, ultimately leading to a more compact and cost-effective power solution.

The TPS54325PWP also boasts a high efficiency over a wide load range, thanks to its integrated 80mΩ high-side MOSFET and 50mΩ low-side MOSFET. Additionally, the converter features a selectable switching frequency from 200kHz to 2.2MHz, allowing designers to optimize between efficiency and component size.

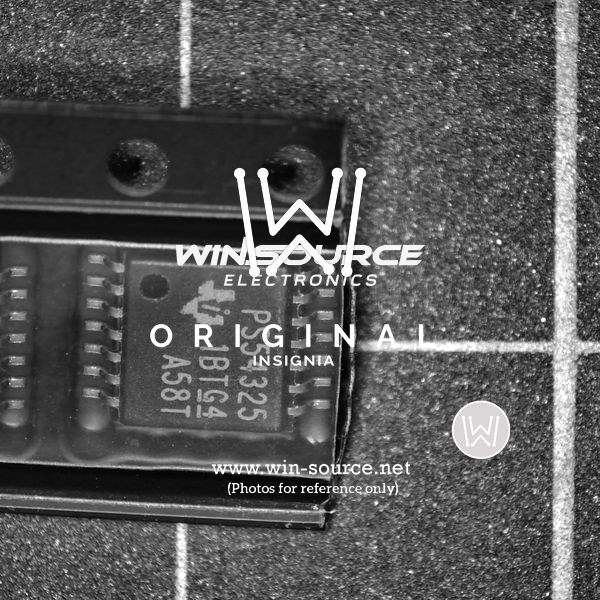

Safety and protection are paramount in any power management solution, and the TPS54325PWP doesn't disappoint. It includes features such as overcurrent protection, thermal shutdown, and under-voltage lockout, ensuring reliable operation under various conditions. Moreover, the device is available in a thermally enhanced 14-pin HTSSOP PowerPAD™ package, which aids in heat dissipation and contributes to its robustness.

Whether you're designing a power supply for set-top boxes, networking equipment, FPGA, DSP, or other high-performance applications, the TPS54325PWP from Texas Instruments is an excellent choice that combines performance, efficiency, and reliability in a compact form factor.
