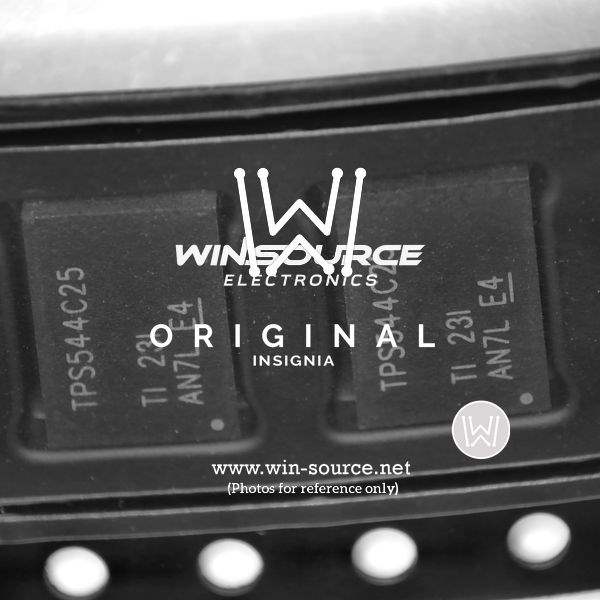

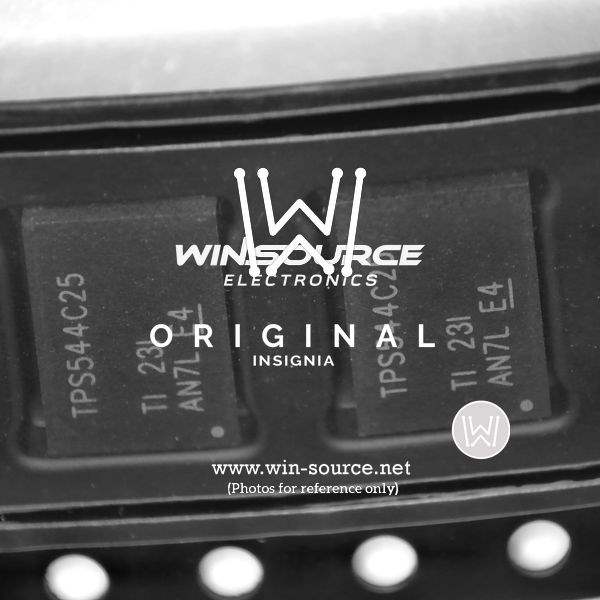

Overview of Texas Instruments TPS544C25RVFR

The Texas Instruments TPS544C25RVFR is a highly sophisticated, integrated power solution designed for use in a wide range of applications, including servers, storage, and networking equipment. This power management IC offers a compact, efficient, and reliable solution for delivering high-performance power conversion.

Key Features

• Integrated Power Solution: The TPS544C25RVFR integrates the controller, power MOSFETs, and associated components into a single package, reducing design complexity and saving board space.
• High Efficiency: With its advanced control architecture, the device achieves high efficiency across a wide load range, making it suitable for energy-sensitive applications.
• PMBus Interface: It features a PMBus interface for digital control and monitoring of the power supply, allowing for real-time adjustments and system diagnostics.
• Adjustable Output Voltage: The output voltage is programmable, which means it can be finely tuned to meet the specific needs of the powered device.
• Fast Transient Response: The TPS544C25RVFR is designed to provide a fast transient response, maintaining stable output despite rapid changes in load.

Applications

The versatility of the TPS544C25RVFR makes it ideal for a variety of applications, including:

• Enterprise servers and storage systems
• Networking equipment such as routers and switches
• Telecommunications infrastructure
• High-performance computing and data centers

Technical Specifications

• Input Voltage Range: 4.5V to 18V
• Output Voltage Range: 0.5V to 3.3V
• Output Current: Up to 30A
• Efficiency: Up to 95%

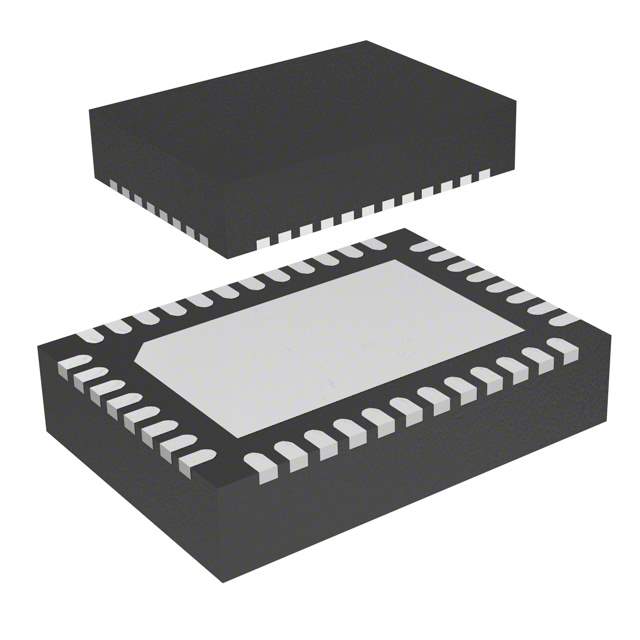

• Package: 40-pin QFN
• Temperature Range: -40°C to 85°C

Conclusion

The TPS544C25RVFR from Texas Instruments represents a powerful, versatile power management solution that combines efficiency, flexibility, and advanced features to meet the rigorous demands of modern electronic systems. Its integrated design simplifies the development process, making it a preferred choice for engineers looking to optimize their power supply design.
