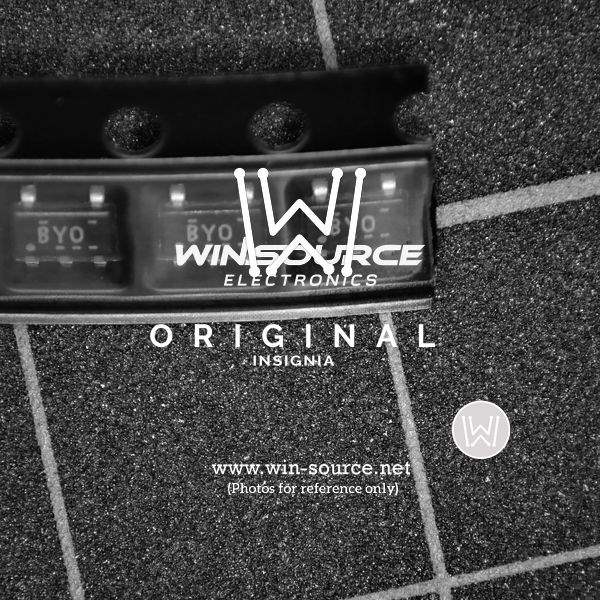

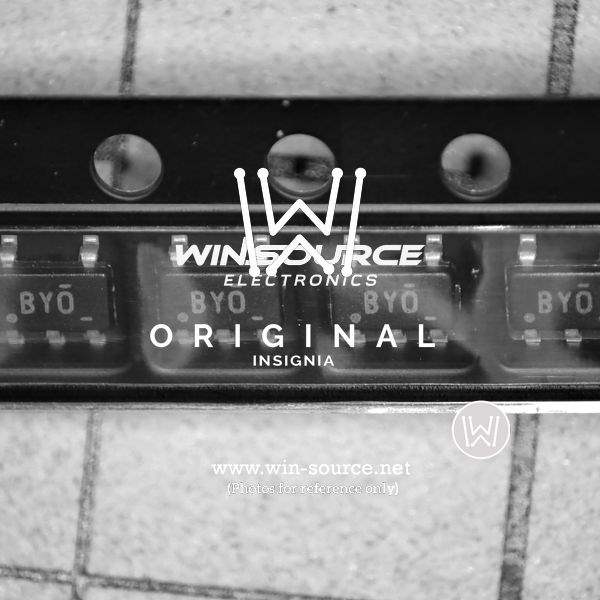

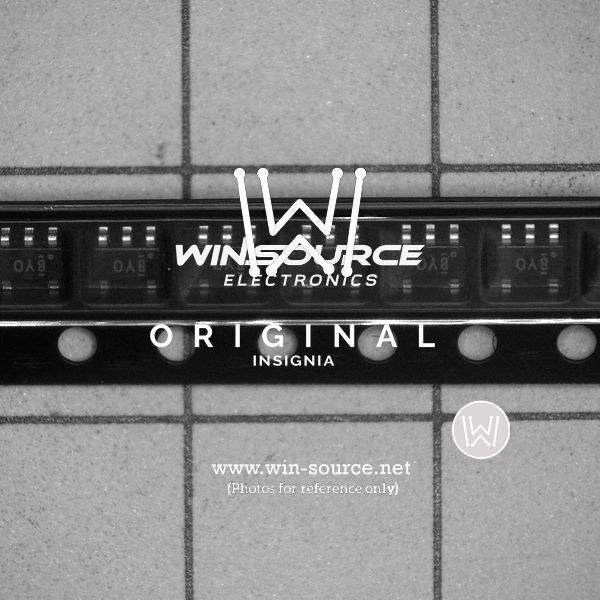

The TPS62240DDCR from Texas Instruments is a highly efficient, synchronous step-down DC/DC converter ideally suited for portable and battery-powered applications. This compact power management integrated circuit (IC) is designed to deliver a continuous output current of up to 300mA while maintaining a high power conversion efficiency.

Key Features

• High Efficiency: The device operates with a high efficiency over a wide load current range, thanks to its 2.25MHz fixed switching frequency which allows for small external components.
• Adjustable Output Voltage: The output voltage is adjustable from 1.8V to 6V, enabling use with a variety of loads and ensuring compatibility with different system requirements.
• Power Save Mode: It includes a power save mode that reduces quiescent current during light load conditions, thus extending battery life in portable devices.
• Small Package: The TPS62240DDCR is available in a small 6-pin TSOT-23 package, minimizing the footprint on the PCB and making it an excellent choice for space-constrained applications.

Applications

This versatile converter is well-suited for a range of applications including, but not limited to, mobile phones, personal digital assistants (PDAs), wireless modems, portable media players, and other handheld devices.

Reliability and Performance

The TPS62240DDCR is designed with a thermal shutdown feature and current overload protection, which enhances the reliability of the device under various operating conditions. Its high-frequency operation also allows for the use of small, low-cost inductors and capacitors, resulting in a cost-effective power solution that does not compromise on performance or efficiency.

Easy Integration

With its straightforward pin configuration and minimal external component requirements, the TPS62240DDCR is easy to integrate into existing and new designs, simplifying the development process and accelerating time-to-market for a wide array of products.
