Product Overview: TPS62303YZDR by Texas Instruments

The TPS62303YZDR is a high-efficiency synchronous step-down DC/DC converter designed by Texas Instruments, tailored for battery-powered applications. This advanced power solution is capable of delivering up to 3A of continuous output current with excellent load and line regulation. The TPS62303YZDR operates at a fixed frequency of 3MHz, allowing the use of small surface-mount inductors and capacitors, which minimizes the solution size and the overall footprint on the PCB.

Key Features

• High Efficiency: The device offers high power efficiency, which is critical for extending battery life in portable devices.
• Adjustable Output Voltage: It provides an adjustable output voltage range from 0.75V to 6V, making it versatile for various applications.
• Power Save Mode: For improved efficiency at light loads, it features a Power Save Mode that reduces the switching frequency to maintain high efficiency over the entire load range.
• Thermal and Over-current Protection: The TPS62303YZDR includes built-in thermal shutdown and over-current protection features to safeguard the device and the system under extreme conditions.

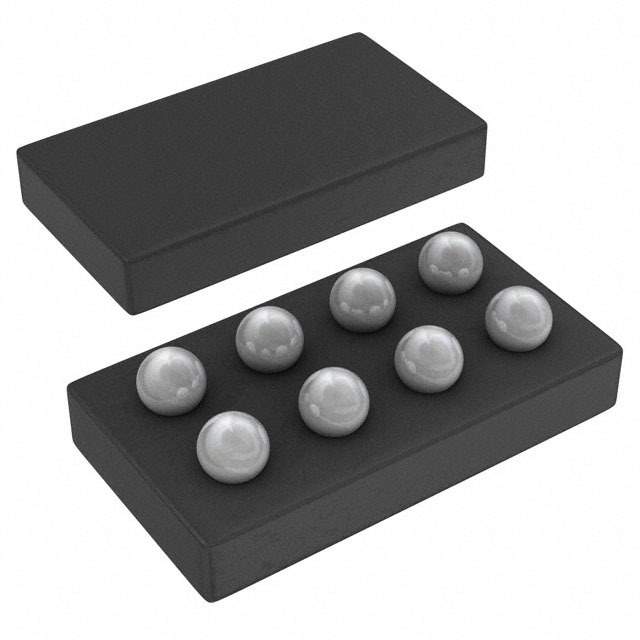

• Small Package Size: The device is offered in a small 8-pin leadless package, which is ideal for space-constrained applications.

Applications

The TPS62303YZDR is suitable for a wide range of applications, particularly where high efficiency and compact size are required. It is commonly used in:

• Smartphones and Tablets
• Portable Media Players
• Wireless LAN and Bluetooth® Devices
• Digital Cameras and Video Cameras
• Handheld GPS Units

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability, and the TPS62303YZDR is no exception. It is designed to meet the stringent requirements of the industry, ensuring stable and reliable performance across a range of environmental conditions.

Support and Resources

For design support and technical resources, including datasheets, application notes, and design tools, customers can visit the Texas Instruments website. TI provides comprehensive support to assist designers in integrating the TPS62303YZDR into their projects.
