Product Overview: TPS65982ABZBHR from Texas Instruments

The TPS65982ABZBHR is a highly integrated and advanced USB Type-C and USB Power Delivery (PD) controller designed by Texas Instruments, a leader in semiconductor solutions. This versatile device is engineered to facilitate the USB Type-C connector's capabilities by managing power delivery and data communication for a variety of electronic products such as laptops, tablets, smartphones, and other peripherals.

Key Features

• USB Type-C and PD Compliance: The TPS65982ABZBHR adheres to the latest USB Type-C and USB PD specifications, ensuring compatibility with a wide range of devices and guaranteeing a reliable user experience.
• Programmable Power Supply: It features a programmable power supply (PPS) that supports flexible power management and fast charging capabilities, making it suitable for devices that require efficient power regulation.
• Integrated Circuit Protection: The device includes built-in circuit protection features such as over-voltage, under-voltage, over-current, and thermal protection, providing a safe and stable operation.
• Alternate Mode Support: With the ability to support alternate modes, the TPS65982ABZBHR can manage non-USB signals over the USB Type-C connector, enabling additional functionalities like video and audio transfer.
• Configurable I/Os: The controller boasts configurable I/O pins that can be tailored to specific application needs, enhancing design flexibility and ease of integration.

Applications

The TPS65982ABZBHR is suitable for a variety of applications, including but not limited to:

• Notebooks and Ultrabooks
• Tablets and Mobile Devices
• Docking Stations
• Monitors and Peripherals
• Power Adapters and Chargers

Technical Specifications

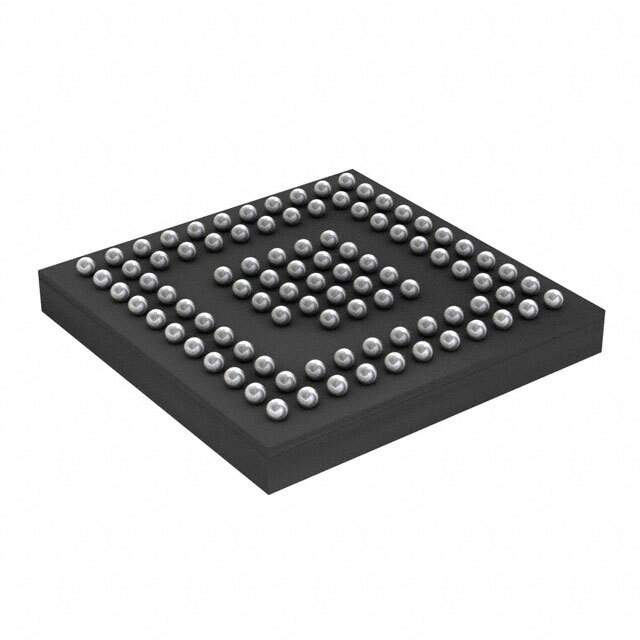

This device comes in a compact 98-ball MicroStar Junior BGA package, making it ideal for space-constrained applications. Its operating temperature range is from -40°C to 85°C, which allows for use in diverse environmental conditions. Additionally, the TPS65982ABZBHR supports a wide range of input voltages, contributing to its versatility in various power scenarios.

The TPS65982ABZBHR from Texas Instruments represents a cutting-edge solution for USB Type-C and PD controller applications, offering robustness, flexibility, and high performance for the next generation of electronic devices.
