The TPS70950DBVT is a state-of-the-art linear voltage regulator designed and manufactured by Texas Instruments, a leader in the semiconductor industry. This device offers a high level of performance for power management applications, making it an ideal choice for a wide range of electronic devices.

Key Features

• Output Voltage: The TPS70950DBVT provides a fixed output voltage of 5.0V, which is essential for consistent performance in electronics that require a stable power supply.
• High Accuracy: This regulator maintains a high accuracy with a typical output accuracy of 2%, ensuring reliable operation for sensitive components.
• Low Dropout: With a low dropout voltage of typically 250 mV at 150 mA load, it is highly efficient for systems with a close input-to-output voltage.
• Current Capacity: It can deliver up to 150 mA of continuous output current, suitable for a variety of low-power applications.
• Thermal Protection: The device includes an over-temperature protection feature that safeguards it against high-temperature conditions.
• Reverse Current Protection: It also features reverse current protection which prevents any backward current flow when the device is powered off.

Applications

The TPS70950DBVT is versatile and can be used in a multitude of applications, including:

• Portable and battery-powered devices
• Power supplies for sensors and analog circuits
• Microcontroller power supplies
• Healthcare and medical equipment
• Smart home and IoT devices

Package and Reliability

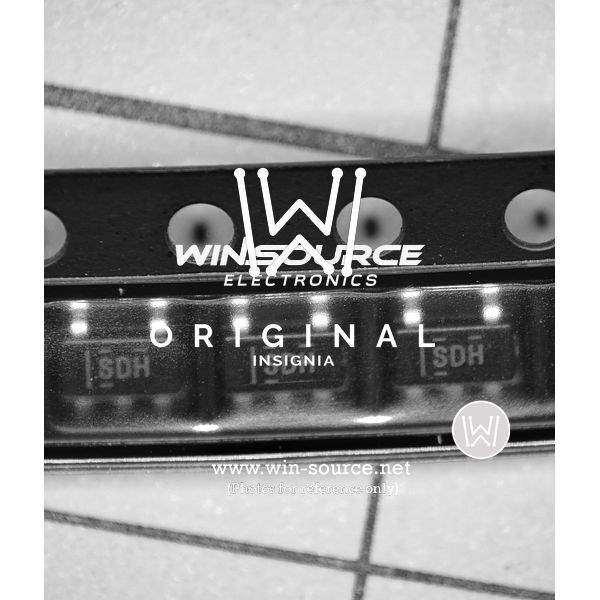

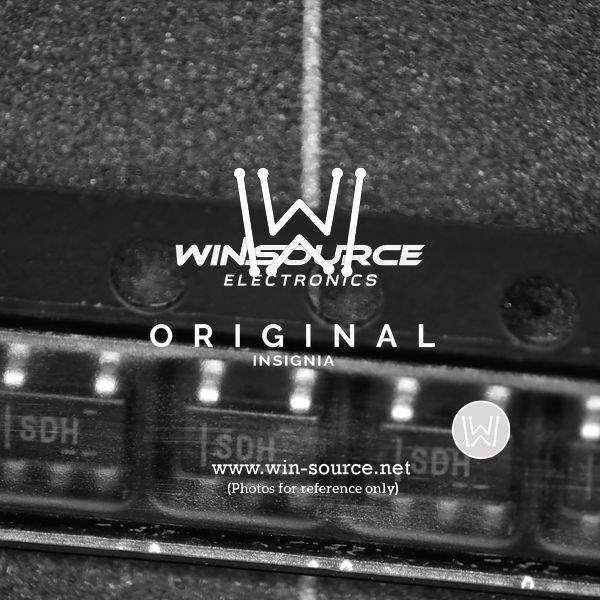

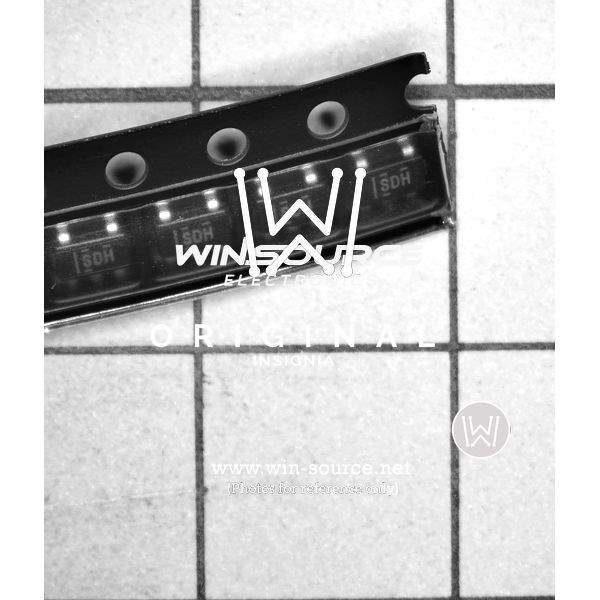

The TPS70950DBVT comes in a compact SOT-23-5 package, which is designed for space-constrained applications. The device is characterized for operation over a wide temperature range of –40°C to 125°C, ensuring reliable performance in various environments.

Conclusion

With its precision output voltage, low dropout, and robust protection features, the TPS70950DBVT from Texas Instruments is an excellent choice for designers looking to enhance the performance and reliability of their power management systems. Its small form factor and wide operating temperature range make it a flexible solution for a broad array of applications.
