The TPS78330DDCR is a highly efficient, low-dropout linear voltage regulator designed and manufactured by Texas Instruments, one of the industry leaders in semiconductor technology. This compact component is ideal for portable and battery-powered applications where extended battery life is crucial. The TPS78330DDCR offers a fixed output voltage of 3.0V, which is suitable for a wide range of low-voltage electronics, including microcontrollers, sensors, and analog circuits.

Key Features

• Low Dropout: The TPS78330DDCR provides an excellent dropout performance, which is typically just 250mV at a 150mA load, ensuring efficient operation even when the input voltage is close to the output voltage.
• High Accuracy: This voltage regulator offers a high output voltage accuracy of 2%, allowing for precise voltage regulation that is critical for sensitive electronic components.
• Low Quiescent Current: It features an ultra-low quiescent current of 500nA in shutdown mode and 1µA in active mode, which significantly reduces power consumption when the device is in standby or idle states.
• Thermal Protection: The device includes built-in thermal shutdown protection that safeguards the regulator and the overall system from damage due to overheating.
• Overcurrent Protection: TPS78330DDCR also incorporates overcurrent protection to prevent damage from excessive load conditions.

Applications

The versatility of the TPS78330DDCR makes it suitable for a broad array of applications, including:

• Wireless handsets and accessories
• Portable media players
• Medical devices
• Power management for DSPs and microprocessors

Package and Availability

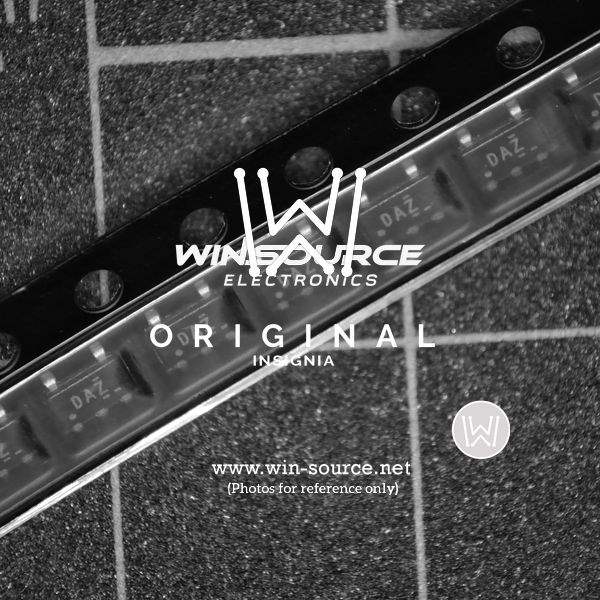

The TPS78330DDCR is offered in a compact 5-pin SOT-23 package, which is designed for space-constrained applications. Its small footprint and low profile make it an excellent choice for portable devices where size and weight are critical design parameters. Texas Instruments provides comprehensive support for this product, including detailed datasheets, application notes, and design resources to facilitate the integration of the TPS78330DDCR into a wide range of electronic systems.
