Overview of Texas Instruments TPS79601DCQR

The TPS79601DCQR is a highly efficient, low-dropout (LDO) voltage regulator designed by Texas Instruments (TI), a leader in semiconductor solutions. This regulator is specifically engineered to deliver a stable and reliable power supply, making it an ideal choice for sensitive applications that require a low-noise, high-performance power source.

Key Features

• Output Voltage: The TPS79601DCQR provides an adjustable output voltage ranging from 1.2V to 5.5V, which can be set using external resistors. This flexibility allows the device to meet the requirements of various applications.
• High Accuracy: It offers excellent regulation with an accuracy of 0.5% at 25°C, ensuring a consistent power supply for critical components.
• Low Dropout: With a very low dropout voltage, this regulator maintains its efficiency even when the input voltage is close to the output voltage, making it suitable for battery-powered devices.
• Low Noise: The TPS79601DCQR is designed to minimize noise, with a typical output noise of 28 µVRMS over a 10 Hz to 100 kHz bandwidth, which is crucial for RF and precision analog circuits.
• High Output Current: It is capable of delivering up to 1A of continuous output current, catering to the needs of power-hungry devices.
• Thermal and Overcurrent Protection: The device includes built-in thermal shutdown and overcurrent protection features to safeguard against damage from overheating and excessive load conditions.

Applications

The versatility of the TPS79601DCQR makes it suitable for a wide range of applications, including:

• Portable and battery-powered devices
• Wireless communication systems
• RF circuits
• Data acquisition systems
• Medical equipment
• High-precision analog circuits

Package and Availability

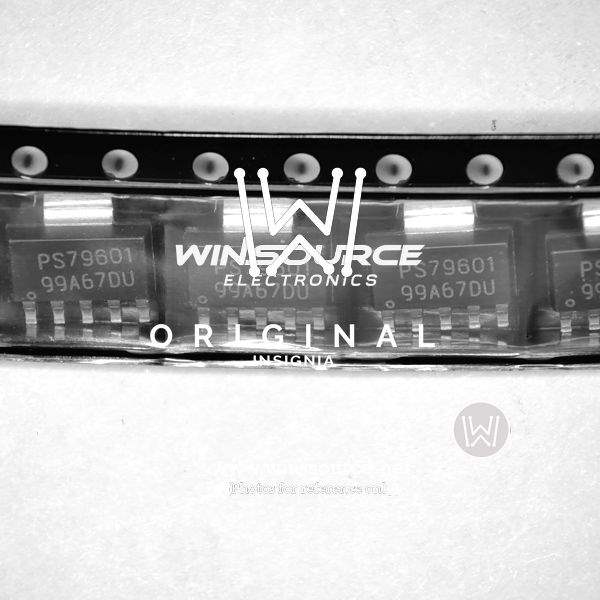

The TPS79601DCQR comes in a compact SOT-223 package, which is optimal for space-constrained applications. It is available for purchase from authorized Texas Instruments distributors and is supported by comprehensive technical documentation, making integration into your design both straightforward and efficient.

For detailed specifications, application notes, and design resources, visit the Texas Instruments website or contact their support team for further assistance.
