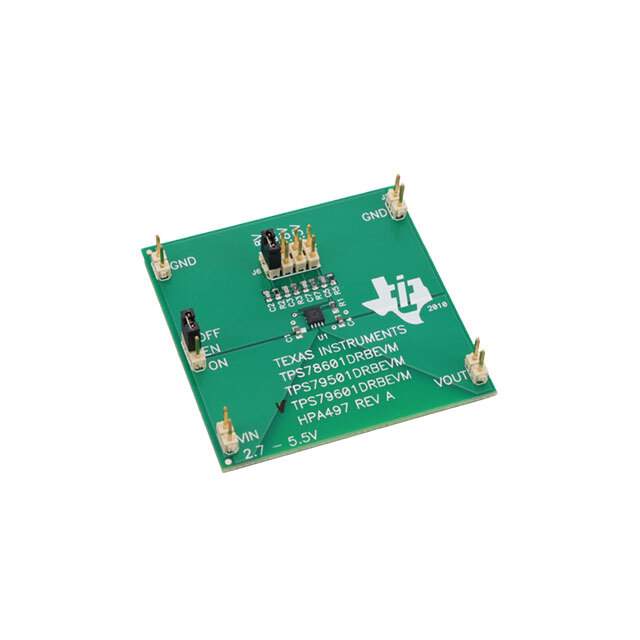

The TPS79601DRBEVM from Texas Instruments is a state-of-the-art evaluation module designed to help both novice and experienced engineers explore the capabilities and performance of the TPS79601 low-dropout (LDO) voltage regulator. This evaluation module (EVM) provides a robust platform for testing and prototyping, offering a practical approach to understanding the features and benefits of the TPS79601 LDO in various applications.

Key Features and Benefits

• High-Performance LDO: The TPS79601DRBEVM showcases the TPS79601 LDO regulator, which delivers a high power-supply rejection ratio (PSRR) and low noise, making it ideal for sensitive RF and analog circuitry.
• Adjustable Output Voltage: The EVM supports an adjustable output voltage range from 1.2V to 5.5V, allowing users to customize the voltage settings according to their specific design requirements.
• Thermal and Overcurrent Protection: Equipped with built-in thermal shutdown and overcurrent protection, the TPS79601DRBEVM ensures safe operation under various conditions, protecting both the module and the application.
• Easy-to-Use: With pre-configured settings and easy-to-access test points, the EVM simplifies the evaluation process, enabling quick and straightforward experimentation and data collection.

Applications

The versatility of the TPS79601DRBEVM makes it suitable for a wide array of applications, including:

• High-precision analog circuits
• RF applications
• Portable and battery-powered devices
• Microcontroller power supplies
• Post-regulation for switching power supplies

Technical Specifications

• Input Voltage Range: 2.7V to 5.5V
• Maximum Output Current: 1A
• Low Dropout Voltage
• Adjustable Output Voltage Range: 1.2V to 5.5V
• High PSRR: 70 dB (typical) at 1 kHz
• Low Output Noise: 28 µVRMS (typical) for 10 Hz to 100 kHz

For engineers seeking to enhance their power management solutions with a reliable and efficient LDO regulator, the TPS79601DRBEVM from Texas Instruments provides an excellent platform for development and testing.
