Product Overview: TPS7A4701RGWR from Texas Instruments

The TPS7A4701RGWR is a state-of-the-art low-dropout regulator (LDO) designed and manufactured by Texas Instruments, a leader in semiconductor solutions. This LDO is highly sought after for its exceptional performance in noise-sensitive applications such as precision instrumentation, high-end audio, and other critical signal processing devices.

Key Features

• Low Noise Output: With an ultra-low noise level of 4.17 µVRMS over a 10 Hz to 100 kHz bandwidth, the TPS7A4701RGWR ensures a clean and stable voltage, minimizing interference in sensitive electronics.
• High Precision: The device offers a high level of voltage accuracy, with an output tolerance of only ±0.5% over line, load, and temperature variations, providing reliable and consistent performance.
• Wide Input Voltage Range: It operates over a broad input voltage range from 3 V to 36 V, making it versatile for various applications and able to handle fluctuating input conditions.
• Adjustable Output Voltage: The output voltage is adjustable from 1.4 V to 34 V, allowing for customization to meet specific circuit requirements.
• High Current Capability: This LDO can deliver a continuous output current of up to 1 A, suitable for a wide array of power supply needs.
• Thermal and Overcurrent Protection: The device includes built-in thermal shutdown and overcurrent protection features, enhancing the safety and longevity of both the regulator and the system it is used in.

Applications

The TPS7A4701RGWR is ideal for use in applications that demand high power-supply purity, such as:

• High-Precision Analog Circuits
• RF and Wireless Infrastructure
• Medical Equipment
• Test and Measurement Systems
• Audiophile-Quality Sound Equipment

Package and Availability

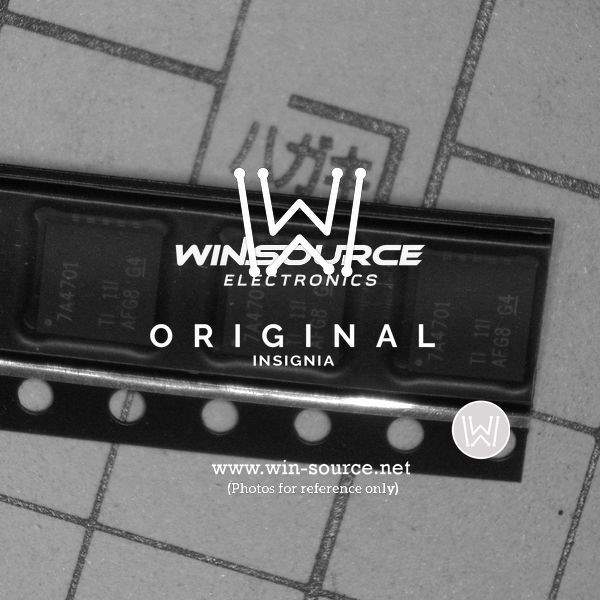

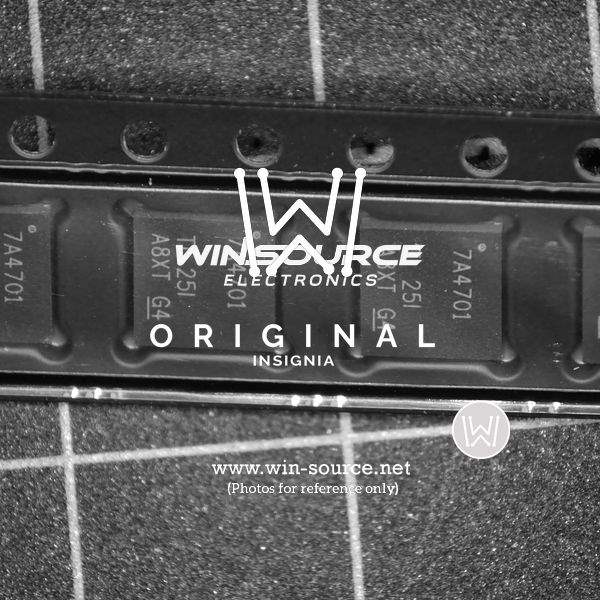

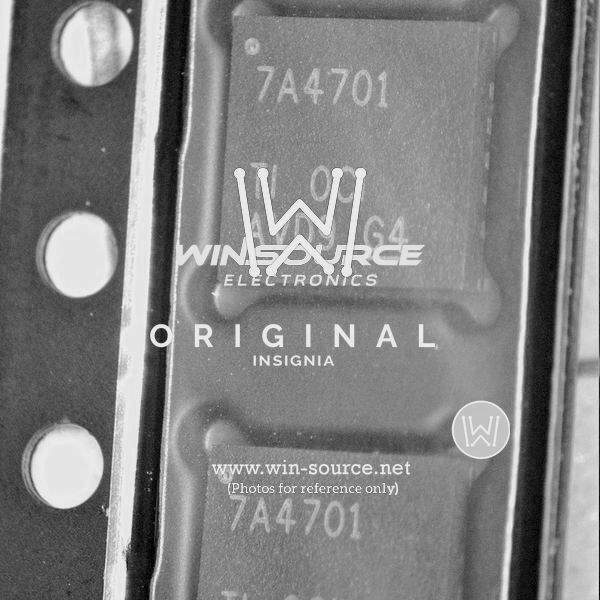

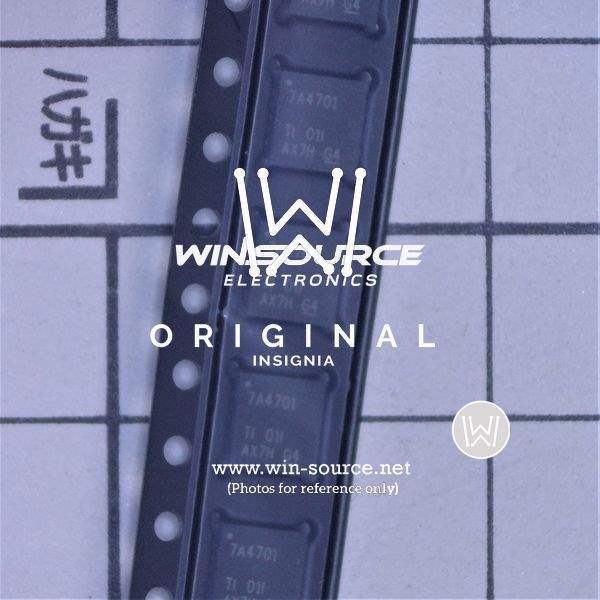

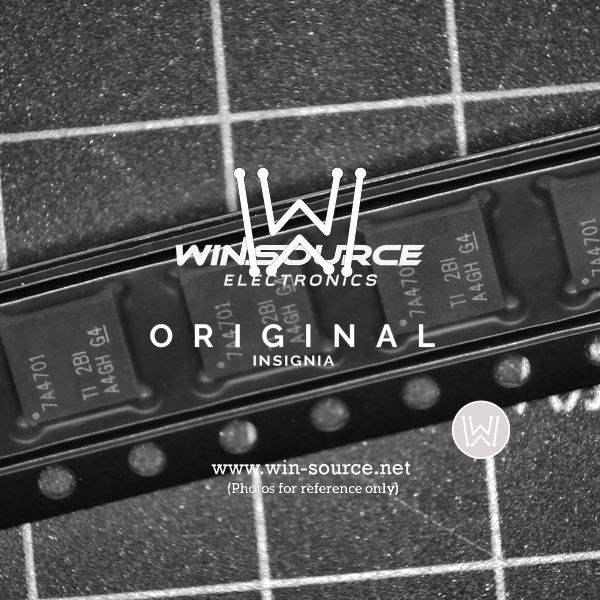

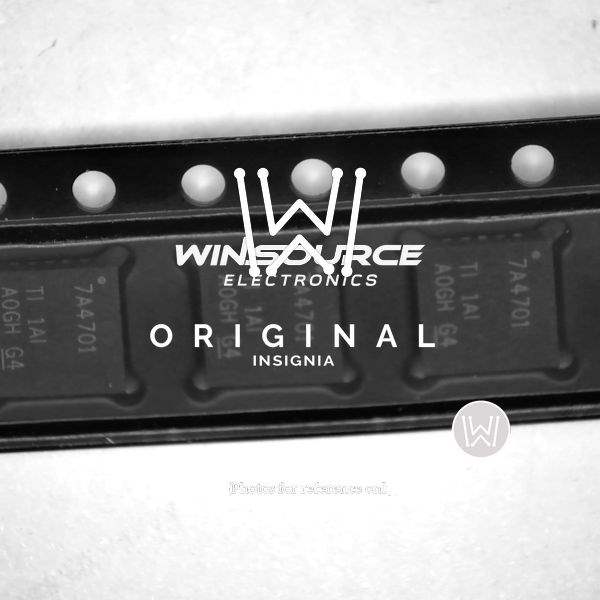

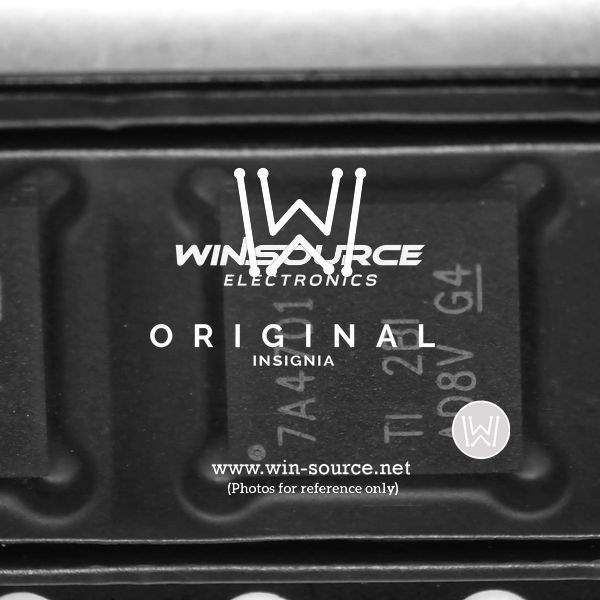

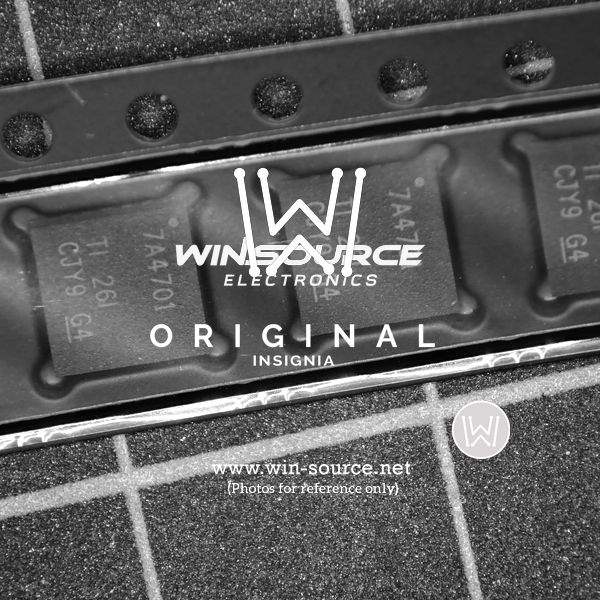

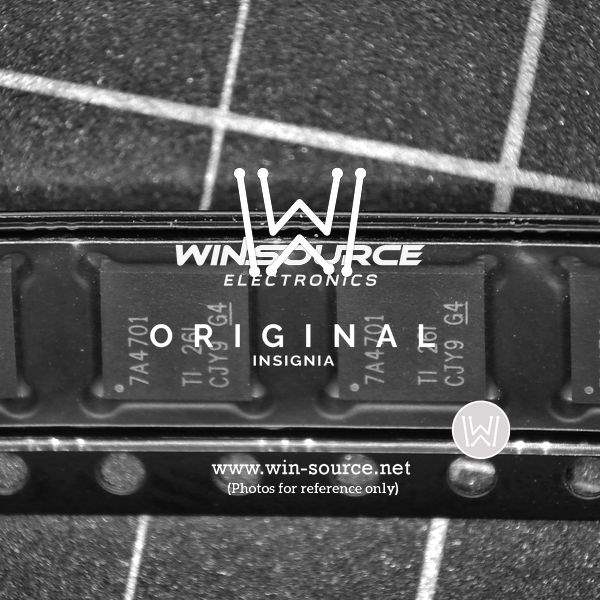

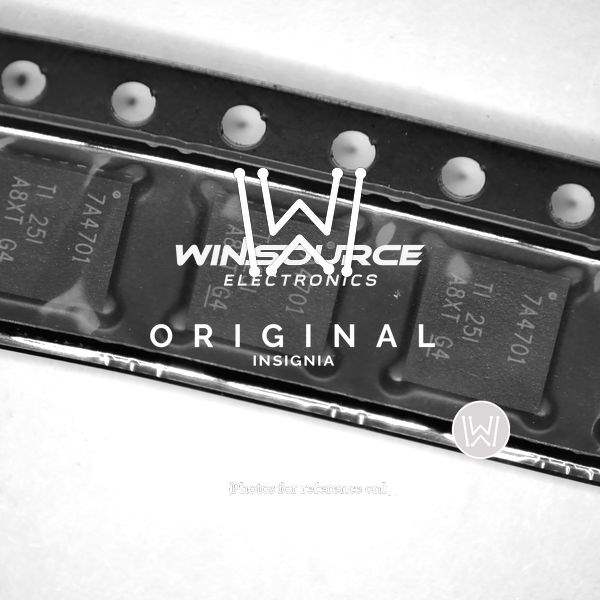

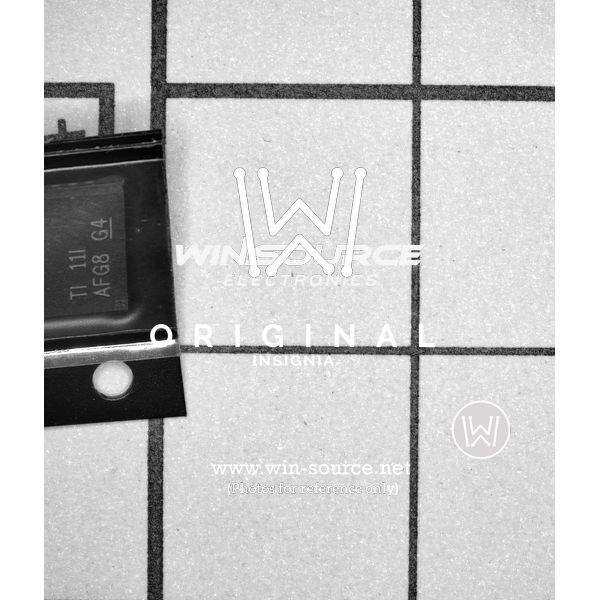

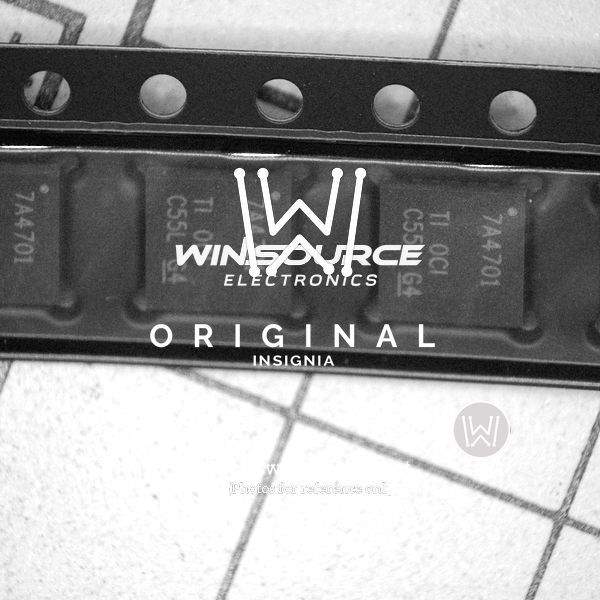

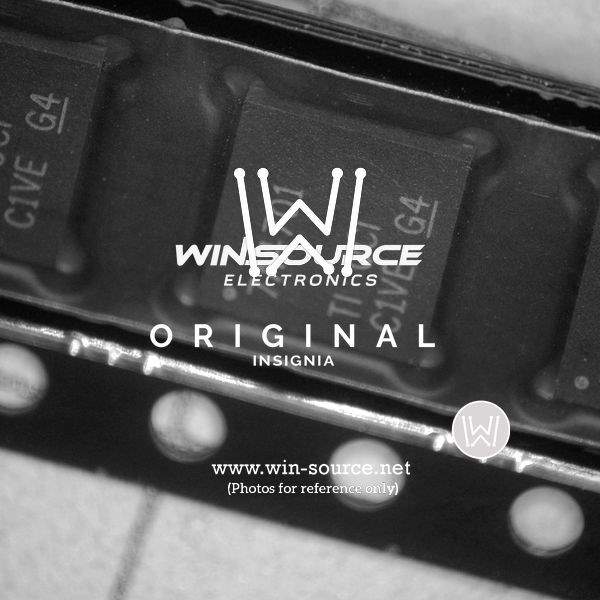

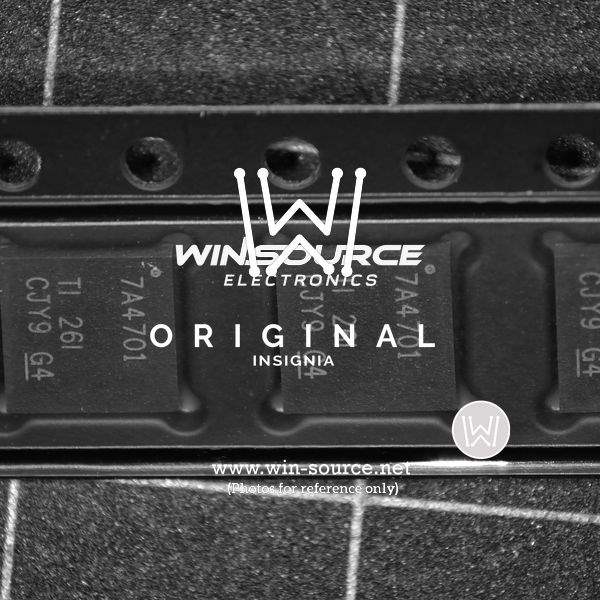

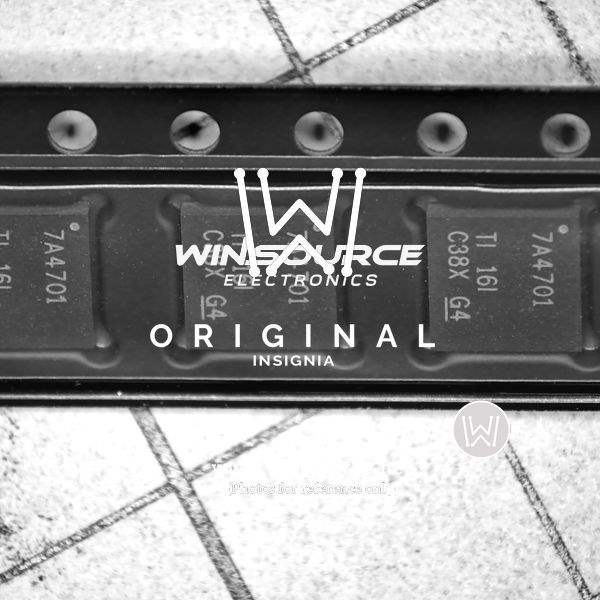

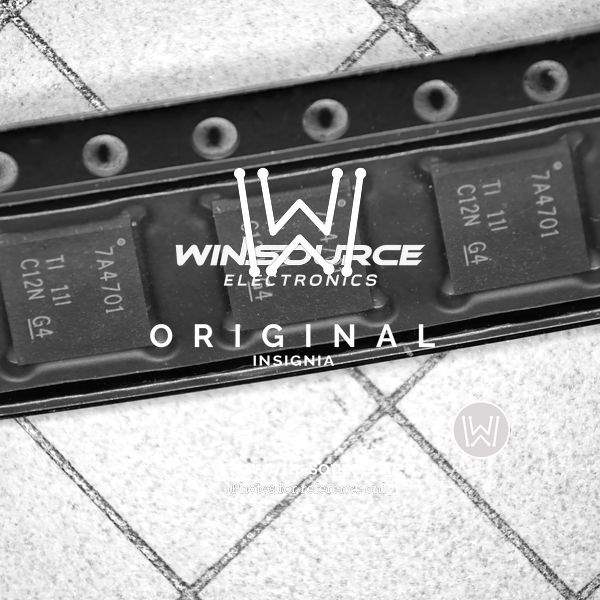

This LDO comes in a compact 20-pin VQFN (RGW) package, ensuring a minimal footprint on the PCB. Its thermal performance is enhanced by a PowerPAD™ on the underside, which aids in heat dissipation. The TPS7A4701RGWR is available for order and can be sourced directly from Texas Instruments or through authorized distributors.

For engineers and designers looking for a high-performance voltage regulator that can deliver clean power under demanding conditions, the TPS7A4701RGWR from Texas Instruments represents an optimal choice.
