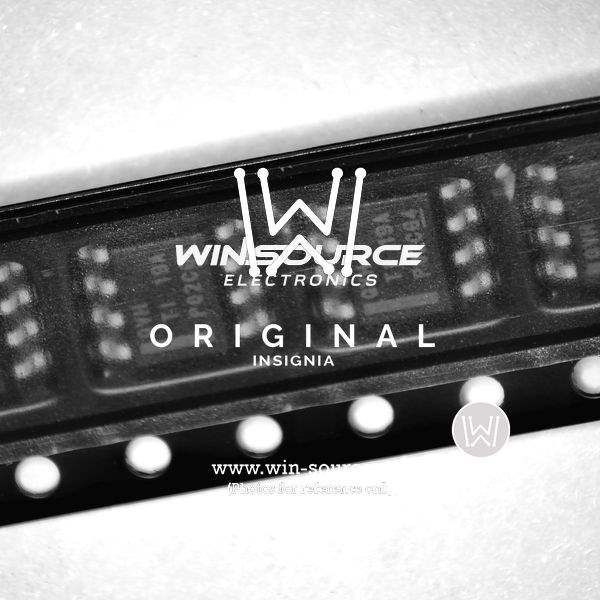

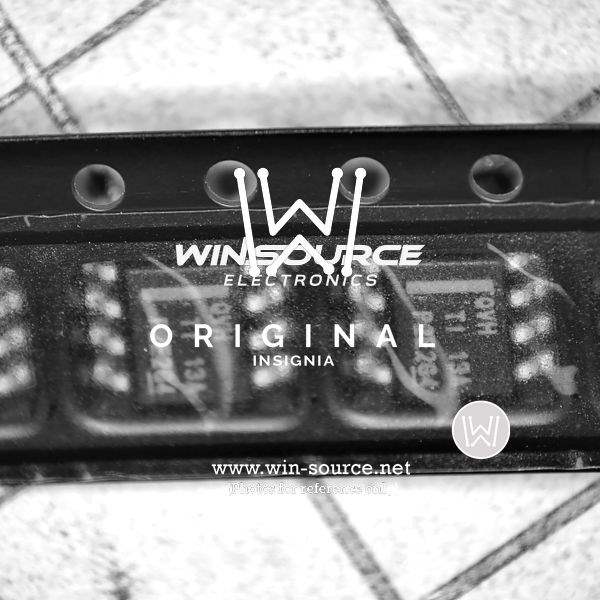

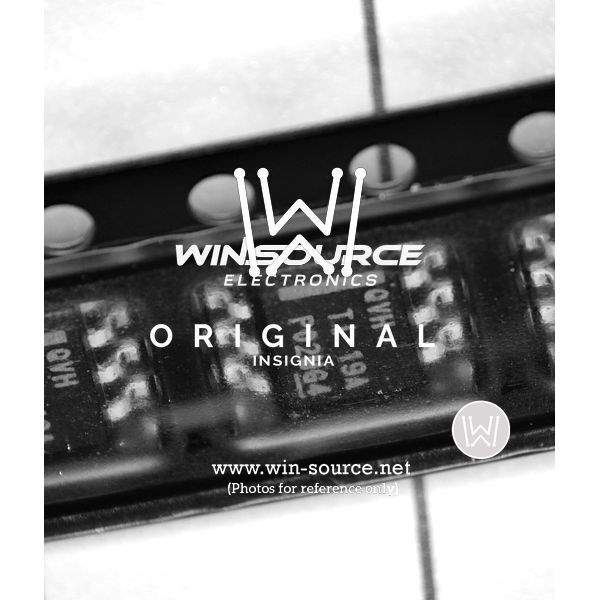

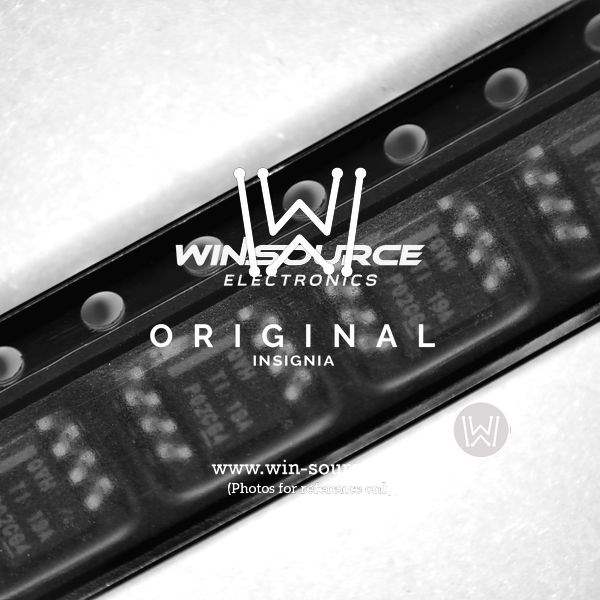

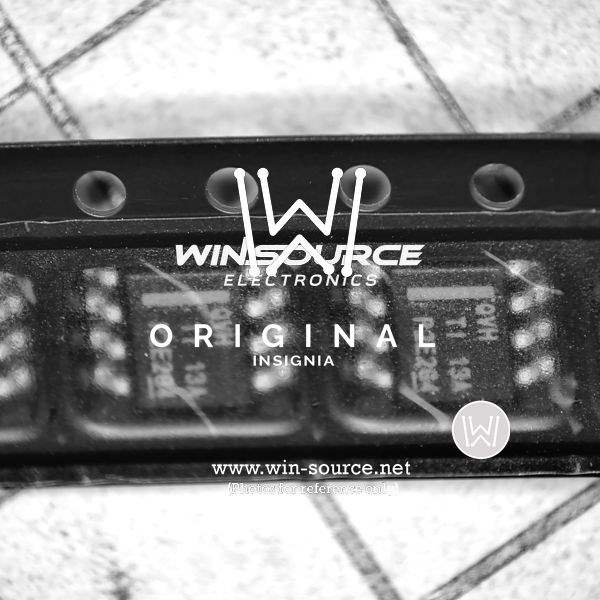

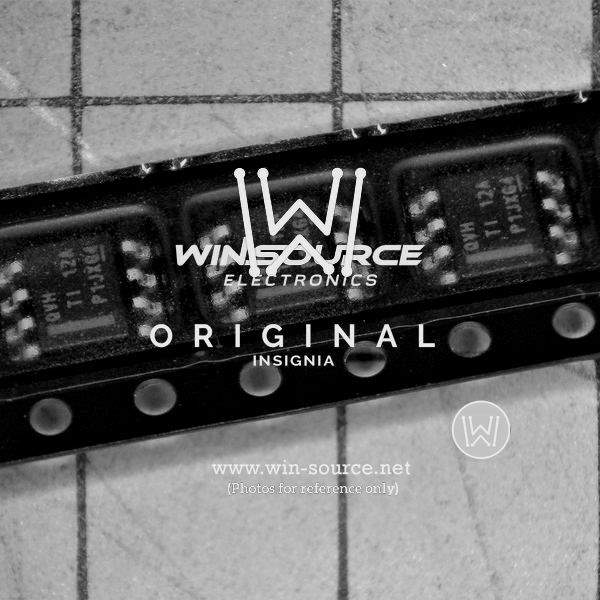

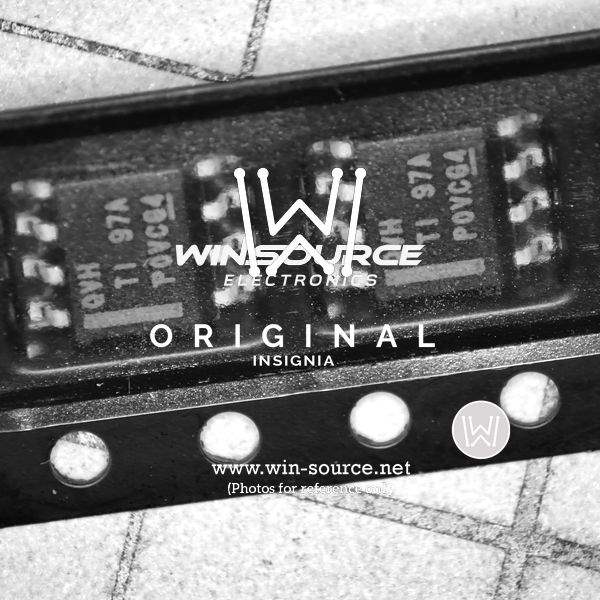

Introducing the TPS7A7001DDAR from Texas Instruments

The TPS7A7001DDAR is a stellar addition to Texas Instruments' extensive lineup of power management integrated circuits. Designed with precision in mind, this low-dropout (LDO) linear voltage regulator is capable of delivering a maximum current of 1A while maintaining excellent regulation and transient response. Its versatility makes it a perfect choice for a wide range of applications, including sensitive RF and analog circuits that demand a clean and stable power supply.

Key Features

• High Output Accuracy: The device offers an impressive output voltage accuracy, ensuring reliable performance for critical applications.
• Low Dropout Voltage: With its low dropout feature, the TPS7A7001DDAR maintains regulation even when the supply voltage is very close to the output voltage, thus improving efficiency.
• Adjustable Output: Users can adjust the output voltage to meet their specific requirements, providing flexibility across different use cases.
• Thermal and Overcurrent Protection: The built-in thermal shutdown and overcurrent protection features safeguard the device and the application from potential damage due to excessive heat or current.
• Stable with Low ESR Capacitors: The regulator is stable with ceramic capacitors, which have a low equivalent series resistance (ESR), reducing the overall solution size and cost.

Applications

The TPS7A7001DDAR is ideal for a variety of applications that require a high-performance power supply. These include:

• RF and high-frequency analog circuits
• Post-regulation for switching power supplies
• Microprocessor and FPGA supply
• Medical equipment
• Automotive infotainment and telematics

Quality and Reliability

Texas Instruments is known for its commitment to quality and the TPS7A7001DDAR is no exception. The device is available in a compact 3.00 mm x 3.00 mm SON-8 package, which is designed to meet the rigorous demands of industrial and automotive applications. With the TPS7A7001DDAR, designers can be confident in the performance and reliability of their power supply solutions.
