The TPS7A8012DRBT from Texas Instruments is a high-performance, low-dropout (LDO) linear voltage regulator that offers exceptional accuracy and low noise in a small form factor. Designed to meet the rigorous power supply requirements of sensitive RF and analog circuitry, the TPS7A8012DRBT provides a stable and reliable power source.

This LDO voltage regulator features a fixed output voltage of 1.2V with an output current capability of up to 1A. It boasts an impressive dropout voltage of just 345 mV at full load, ensuring efficient operation even when the input voltage is close to the output voltage. The device operates over a wide input voltage range from 1.5V to 6.5V, making it versatile for a variety of applications.

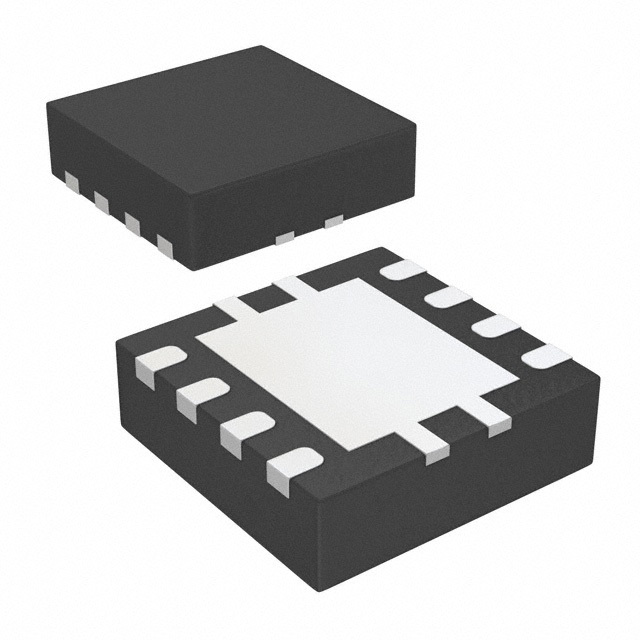

The TPS7A8012DRBT comes in a compact 3mm x 3mm SON-8 package, which is ideal for space-constrained applications. Its thermal performance is enhanced by a PowerPAD™ on the underside, providing an effective thermal path for heat dissipation. The device also features a low quiescent current of 1µA in shutdown mode, contributing to energy savings in battery-powered devices.

Texas Instruments has incorporated several protective features into the TPS7A8012DRBT to ensure long-term reliability. These include built-in overcurrent protection, thermal shutdown, and reverse polarity protection. Additionally, the device offers a noise reduction pin that allows the use of an external bypass capacitor to decrease output noise, a critical feature for precision analog applications.

The TPS7A8012DRBT is an excellent choice for powering sensitive applications such as portable RF equipment, medical devices, instrumentation, and high-end audio products. Its low noise performance, high accuracy, and robust protection features make it a reliable power solution for designers looking to optimize their systems for performance and power efficiency.
