TPS7A8400RGRR - Texas Instruments

The TPS7A8400RGRR from Texas Instruments is a state-of-the-art low-dropout linear regulator (LDO) that boasts an exceptional combination of low noise, high PSRR (Power Supply Rejection Ratio), and low quiescent current, making it ideal for a wide range of applications. This LDO is designed to meet the stringent requirements of RF and analog circuits, providing a clean and stable power supply.

Key Features:

• Low Noise Output: The TPS7A8400RGRR offers an ultra-low noise output, which is crucial for sensitive RF and analog applications where noise can significantly impact performance.
• High PSRR: With a high PSRR of 70 dB at 1 kHz, this LDO can suppress power supply variations, ensuring that the output voltage remains stable even with fluctuations in the input supply.
• Wide Input Voltage Range: The device supports an input voltage range from 1.5V to 6.5V, providing flexibility for various design requirements.
• Adjustable Output Voltage: The output voltage is adjustable from 0.8V to 5.0V, allowing designers to tailor the voltage to the specific needs of their circuit.
• Thermal and Overcurrent Protection: The TPS7A8400RGRR includes built-in thermal shutdown and overcurrent protection features that safeguard the device and the application from damage due to excessive heat or current.

Applications:

• RF applications
• High-performance analog circuits
• Portable and battery-powered equipment
• Data acquisition systems
• Medical equipment
• Audio applications

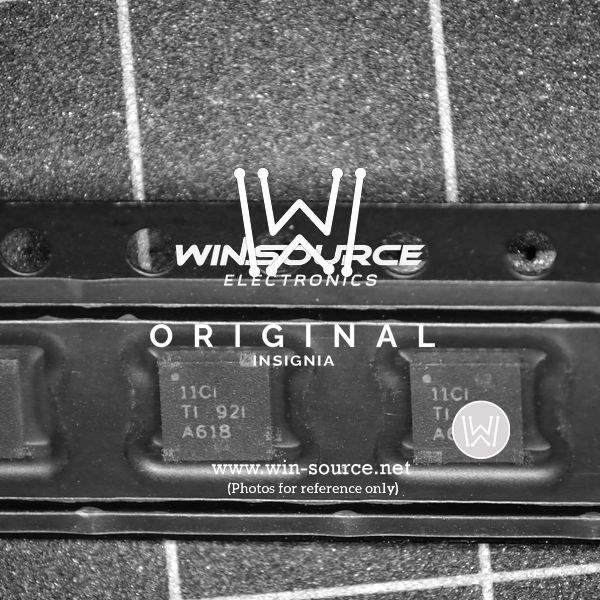

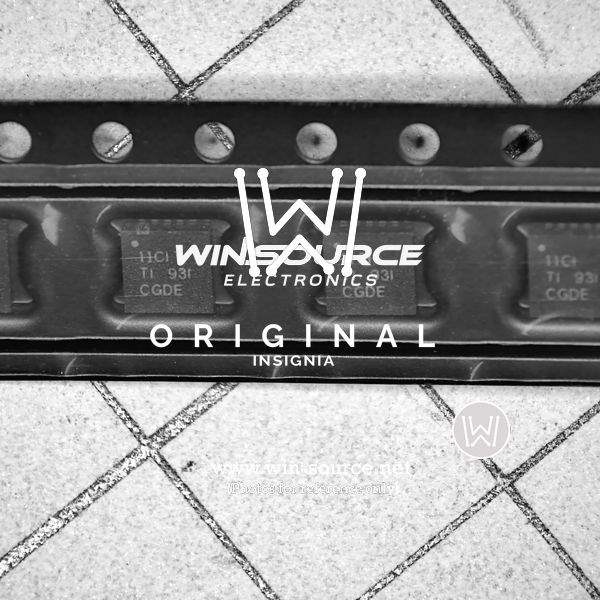

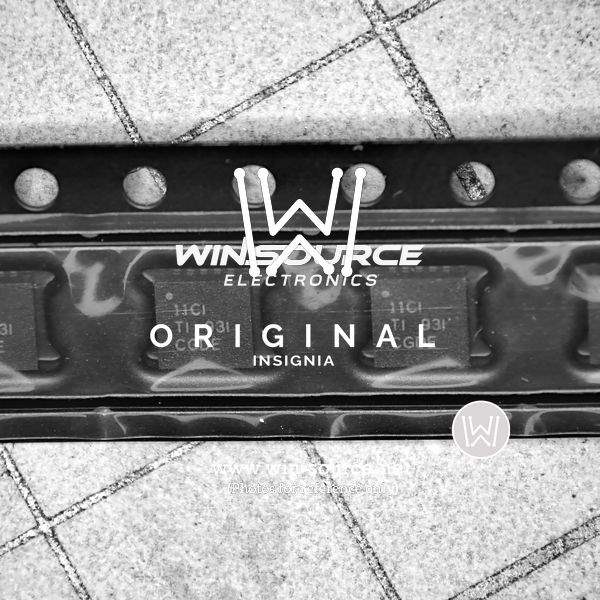

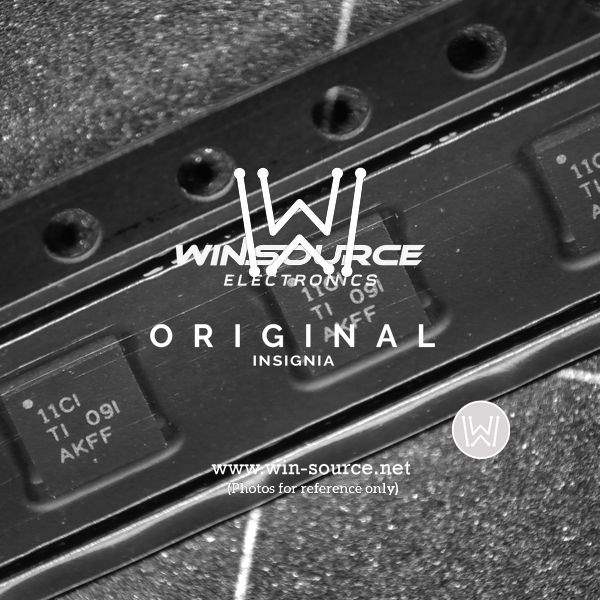

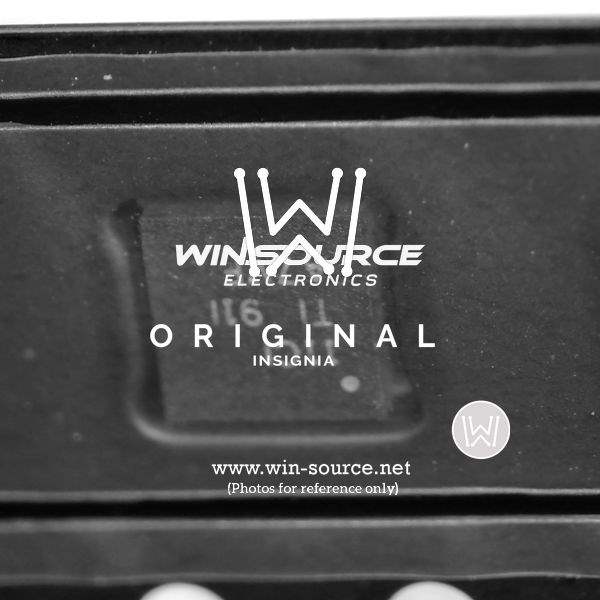

The TPS7A8400RGRR comes in a compact VQFN-20 package, making it suitable for space-constrained applications while still providing excellent thermal performance. Its advanced design ensures that it delivers a clean and reliable power supply, which is essential for maintaining the integrity of sensitive electronic systems. Texas Instruments' commitment to quality and performance is evident in this robust and versatile LDO regulator.
