Introducing the TPS7A9401DSCR from Texas Instruments

The TPS7A9401DSCR is a state-of-the-art, low-dropout linear regulator (LDO) designed and manufactured by Texas Instruments, a leader in semiconductor solutions. This advanced component is engineered to deliver high performance, reliability, and efficiency, making it an ideal choice for a wide range of applications.

Key Features

• Output Voltage Range: The TPS7A9401DSCR offers an adjustable output voltage range from 0.8 V to 5.0 V, which allows for flexible deployment in various circuit configurations.
• High Output Current: With a capability to deliver up to 1 A of continuous output current, it can power a broad spectrum of devices, from sensitive analog circuits to digital interfaces.
• Low Dropout Voltage: The low dropout voltage (LDO) feature ensures efficient operation, even when the input-to-output voltage differential is minimal, thus preserving battery life in portable applications.
• Excellent Load and Line Regulation: The regulator maintains a stable output voltage despite fluctuations in load or input voltage, providing consistent performance and enhancing system reliability.
• Low Noise Performance: It is designed for applications that demand low noise, making it suitable for sensitive RF or audio circuits where noise can significantly impact performance.
• Thermal and Overcurrent Protection: The device includes built-in thermal shutdown and overcurrent protection features to safeguard against conditions that could potentially damage the component or the system.

Applications

The TPS7A9401DSCR's versatility makes it an excellent choice for a variety of applications, including:

• Telecommunications
• Data acquisition systems
• Portable and battery-powered devices
• Post-regulation for switching power supplies
• High-precision analog circuits

Package and Availability

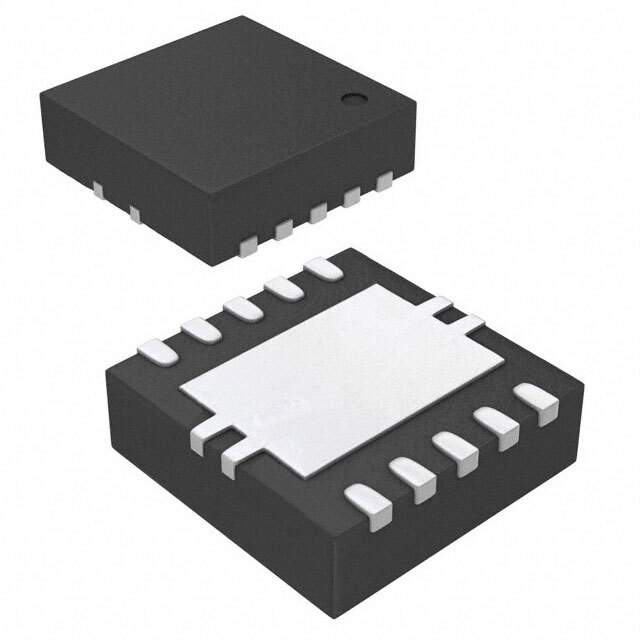

Encased in a compact, surface-mount, SON-6 package, the TPS7A9401DSCR is designed for space-constrained applications. Its small footprint ensures that it can be integrated into various designs without compromising performance. Texas Instruments provides comprehensive technical support and documentation, making the integration of the TPS7A9401DSCR into your designs seamless and straightforward.

For those seeking a reliable and efficient voltage regulation solution, the TPS7A9401DSCR by Texas Instruments stands out as a top-tier option that combines performance with practicality.
