Product Overview: TS3A44159PWRG4

The TS3A44159PWRG4 is a versatile quad single-pole double-throw (SPDT) analog switch designed and manufactured by Texas Instruments. This high-performance component is well-suited for a wide range of applications including signal routing in audio, video, and data communications systems. With its low on-state resistance and wide operating temperature range, the TS3A44159PWRG4 is engineered to provide efficient and reliable performance in both consumer and industrial electronics.

Key Features

• Low On-State Resistance: The device features a low on-state resistance of typically 0.9 ohms, minimizing signal distortion and power loss.
• Wide Operating Voltage Range: The switch operates over a wide voltage range of 1.65V to 3.6V, making it suitable for various low-voltage applications.
• High Bandwidth: With a bandwidth of 300 MHz, it can handle high-speed signals without significant attenuation.
• ESD Protection: The switch includes robust electrostatic discharge (ESD) protection, ensuring durability against static electricity and enhancing product longevity.
• Low Power Consumption: The TS3A44159PWRG4 is designed for low power consumption, which is critical for battery-powered devices.
• Bidirectional Signal Flow: The switch allows bidirectional signal flow, providing flexibility in signal routing.

Applications

• Cellular Phones
• PDAs
• Portable Instrumentation
• Audio and Video Signal Routing
• Data Communication Systems

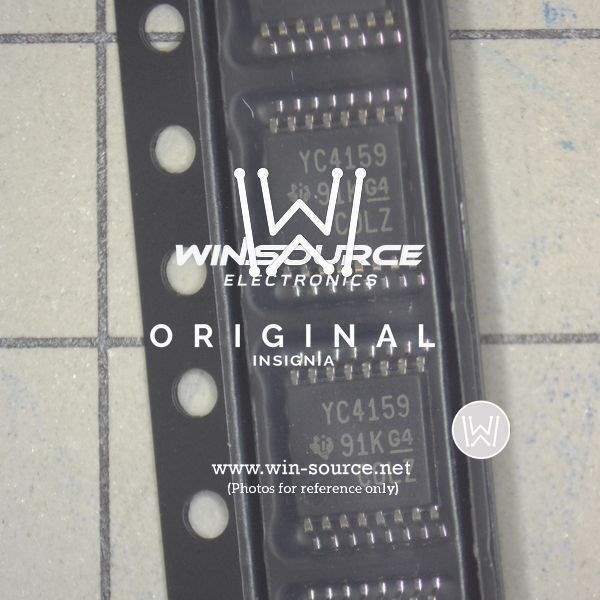

The TS3A44159PWRG4 comes in a compact TSSOP-16 package, which is ideal for space-constrained applications. Its design ensures minimal crosstalk between channels, and it includes break-before-make switching functionality that prevents signal interference during channel transitions. This product is a testament to Texas Instruments' commitment to providing high-quality, precision-engineered components that meet the evolving needs of modern electronics.
