The TUSB544IRNQR from Texas Instruments is a high-performance USB redriver designed to enhance signal quality in USB systems. This advanced redriver is part of the Texas Instruments USB signal conditioning product line, which aims to provide solutions for improving signal integrity in various applications.

Key Features

• USB 3.1 Gen 2 Support: The TUSB544IRNQR supports data rates up to 10 Gbps, making it compatible with the latest USB 3.1 Gen 2 standards for high-speed data transfer.
• Adjustable Equalization: It features programmable equalization, allowing for optimization of performance over a variety of physical media by reducing inter-symbol interference.
• Channel Configuration: The device offers a 2:1 multiplexer/demultiplexer configuration, providing design flexibility for various USB applications.
• Low Power Consumption: Designed for efficiency, the redriver consumes low power, making it suitable for battery-powered devices.
• I2C Support: The TUSB544IRNQR includes an I2C interface, enabling easy configuration and control of the redriver's settings.

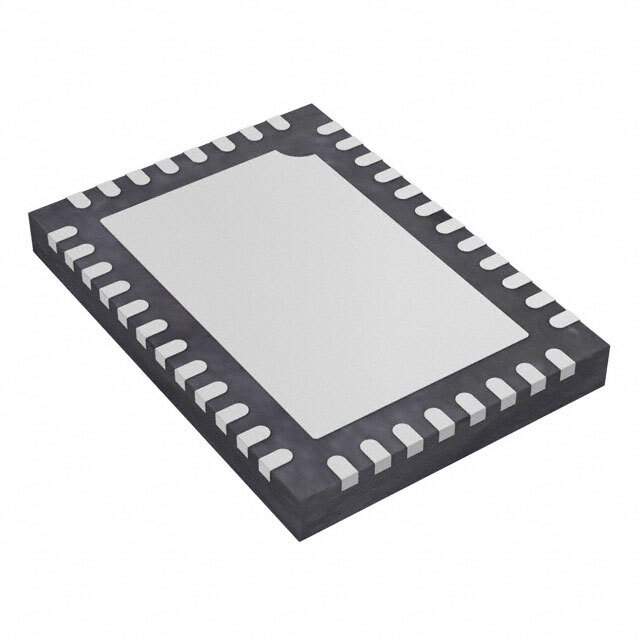

• Small Form Factor: Packaged in a small, space-saving 3.5mm x 9mm QFN, it is ideal for compact systems where board space is at a premium.

Applications

The TUSB544IRNQR is versatile and can be used in a variety of applications, including:

• Desktop and laptop computers
• Smartphones and tablets
• Docking stations
• Monitors and displays with USB interfaces
• USB hubs and peripherals

Product Summary

The TUSB544IRNQR is a robust solution for system designers looking to enhance USB signal integrity in their products. With its support for USB 3.1 Gen 2 speeds, programmable equalization, and low power consumption, it is an ideal choice for a wide range of high-speed USB applications. Texas Instruments' commitment to quality and performance is evident in this reliable and flexible USB redriver.
