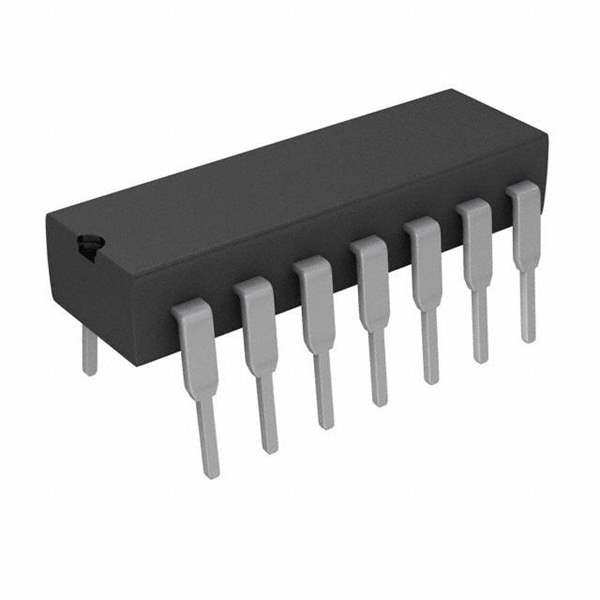

The UCC2570N from Texas Instruments is a robust and versatile PWM (Pulse Width Modulation) controller designed for a wide range of power conversion applications. This integrated circuit is specifically engineered to offer efficient and reliable performance for switch-mode power supplies, DC-DC converters, and other power control systems.

Key Features

• Advanced PWM Control: The UCC2570N provides precise pulse width modulation control, enabling power supply designs that are both energy-efficient and have tightly regulated output voltages.
• Wide Operating Range: With an operating voltage range that accommodates various applications, this controller is highly adaptable to different system requirements.
• High-Frequency Operation: The device is capable of high-frequency operation which allows for smaller external components, reducing the overall size and cost of the power supply design.
• Protection Features: It includes multiple protection features such as under-voltage lockout, over-current protection, and thermal shutdown, ensuring the longevity and safety of the application it is used in.

Applications

The UCC2570N is ideal for a variety of applications where efficient power conversion is crucial. It is commonly used in:

• AC-DC power supplies
• Isolated and non-isolated DC-DC converters
• LED drivers
• Battery chargers
• Telecommunication equipment

Technical Specifications

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the UCC2570N is no exception. It is built to meet the stringent requirements of industrial and commercial applications, ensuring reliable performance even under challenging conditions.
