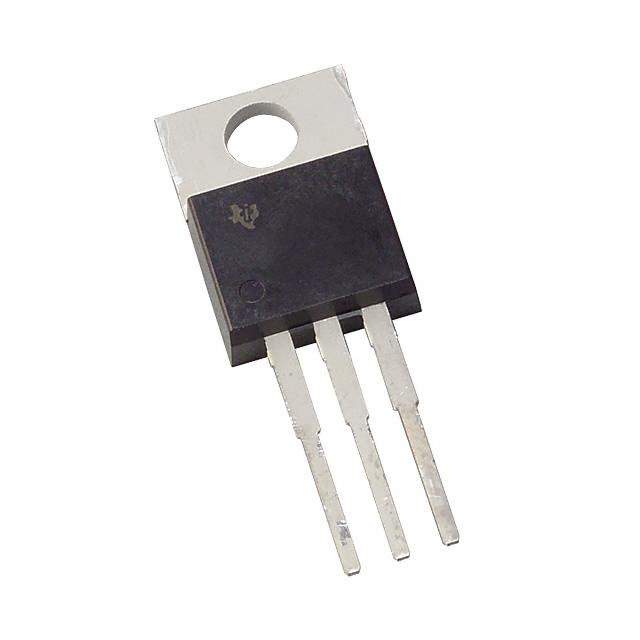

UCC283T-3

Part No UCC283T-3
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description LOW DROPOUT 3-A LINEAR REGULATOR FAMILY
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Texas Instruments
Packaging Tube
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage Input MAX 9V
Output Voltage 3.3V
Voltage Dropout (Maximum) 1V @ 3A
Output Current 3A
Operating Supply Current 650μA
Protection Features Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature Range -40°C ~ 85°C
Mounting Style Through Hole
Package TO-220-3
Manufacturer Package TO-220-3
Win Source Part Number 1276275-UCC283T-3
Manufacturer Homepage www.ti.com
Popularity Medium
Supply and Demand Status Limited
Family Name UCC283-3
Introduction Date November 01, 2004
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian UCC283T-3 CAD Model

Description

Introducing the UCC283T-3 Linear Voltage Regulator from Texas Instruments

The UCC283T-3 is a high-quality linear voltage regulator designed and manufactured by Texas Instruments, a leader in semiconductor solutions. This regulator is part of the UCC28 series, which is known for its reliability and performance in a wide range of applications. The UCC283T-3 offers a fixed output voltage of 3V, making it an ideal choice for systems that require a stable and precise low-voltage supply.

Key Features

  • Output Voltage: Fixed 3V output with excellent regulation, ensuring a stable voltage supply for sensitive electronics.
  • Current Capability: Capable of delivering up to 3A of output current, suitable for high-power applications.
  • Low Dropout Voltage: Features a low dropout voltage, which allows the regulator to maintain output voltage even when the supply voltage is close to the output voltage.
  • Thermal Protection: Integrated thermal shutdown mechanism that protects the device from overheating and potential damage.
  • Overcurrent Protection: Built-in current limit to safeguard the regulator and the load from excessive currents.
  • Package: Available in a TO-220 package, which is known for its ease of handling and efficient heat dissipation.

Applications

The UCC283T-3 is versatile and can be used in various applications where a stable 3V power supply is critical. Some common applications include:

  • Power supplies for digital systems such as microcontrollers and DSPs
  • Battery-powered devices
  • Portable consumer electronics
  • Industrial control systems
  • Telecommunication equipment

Quality and Reliability

Texas Instruments is committed to delivering high-quality products. The UCC283T-3 is no exception, with rigorous testing and quality control measures in place to ensure that it meets the high standards expected from TI components. Customers can trust this regulator to perform consistently and reliably in their electronic designs.

In summary, the UCC283T-3 linear voltage regulator from Texas Instruments is a robust and reliable solution for applications requiring a fixed 3V output with high current capability. Its comprehensive protection features and strong performance make it an excellent choice for designers looking to enhance the stability and efficiency of their power supply systems.
