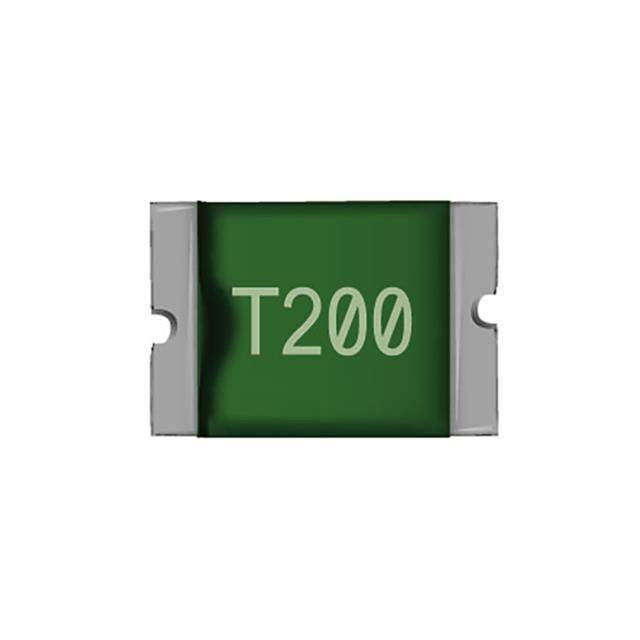

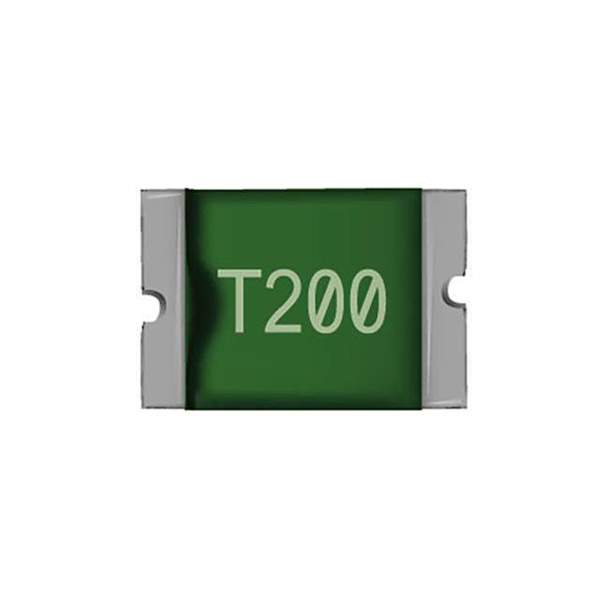

KMC3S200RY Real Image1 KMC3S200RY Real Image2
Same model may have multiple batches, images only for reference.
KMC3S200RY Real Image1 KMC3S200RY Real Image2
KMC3S200RY Real Image1 KMC3S200RY Real Image2
Same model may have multiple batches, images only for reference.

KMC3S200RY

Part No KMC3S200RY
Manufacturer Thinking Electronic Industrial Co.,Ltd
Catalog PTC Resettable Fuses
Description Polymer PTC 2.0A Resettable Fuse / Polymeric PTC Resettable Fuse 6V 2 A Ih Surface Mount 1206 (3216 Metric), Concave
Datasheet
KMC3S200RY Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Thinking Electronic Industrial Co.,Ltd
Series KMC
Package Tape & Reel (TR)
Type Polymeric
Voltage - Max 6V
Current - Hold (Ih) (Max) 2 A
Current - Trip (It) 3.5 A
Current - Max 100 A
Time to Trip 1.5 s
Resistance - Initial (Ri) (Min) 20 mOhms
Resistance - Post Trip (R1) (Max) 80 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric), Concave
Size / Dimension 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) -
Thickness (Max) 0.053" (1.35mm)
Lead Spacing -
Approval Agency cUL, TUV, UL
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
HTSUS 8504.50.4000
Standard Package 1 pcs
Win Source Part Number 1382425-KMC3S200RY
Ultra Librarian 3D Model Ultra Librarian KMC3S200RY CAD Model

Description

The KMC3S200RY is a polymeric PTC resettable fuse designed for circuit protection applications. It has a maximum voltage rating of 6V and a maximum current rating of 100A.

  • Maximum Voltage: 6V
  • Maximum Current: 100A
  • Time to Trip: 1.5s
  • Initial Resistance: 20mOhms
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 85°C
