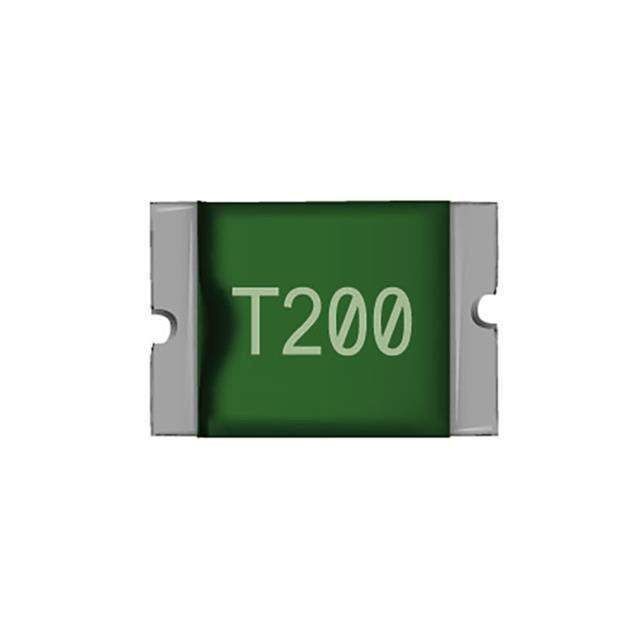

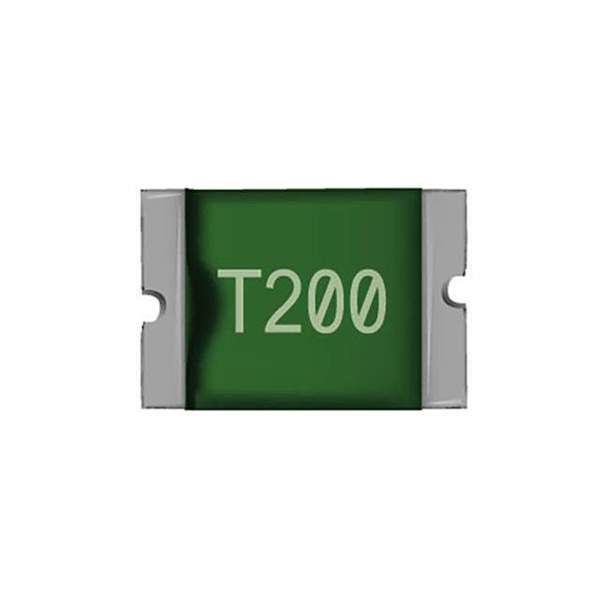

KMC5S110RY24 Real Image1 KMC5S110RY24 Real Image2
Same model may have multiple batches, images only for reference.
KMC5S110RY24 Real Image1 KMC5S110RY24 Real Image2
KMC5S110RY24 Real Image1 KMC5S110RY24 Real Image2
Same model may have multiple batches, images only for reference.

KMC5S110RY24

Part No KMC5S110RY24
Manufacturer Thinking Electronic Industrial Co.,Ltd
Catalog PTC Resettable Fuses
Description Polymer PTC 1.1A Resettable Fuse / Polymeric PTC Resettable Fuse 24V 1.1 A Ih Surface Mount 1812 (4532 Metric), Concave
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Thinking Electronic Industrial Co.,Ltd
Series KMC
Package Tape & Reel (TR)
Type Polymeric
Voltage - Max 24V
Current - Hold (Ih) (Max) 1.1 A
Current - Trip (It) 2.2 A
Current - Max 20 A
Time to Trip 500 ms
Resistance - Initial (Ri) (Min) 60 mOhms
Resistance - Post Trip (R1) (Max) 200 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric), Concave
Size / Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) -
Thickness (Max) 0.039" (1.00mm)
Lead Spacing -
Approval Agency cUL, TUV, UL
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
HTSUS 8504.50.4000
Standard Package 1 pcs
Win Source Part Number 1382427-KMC5S110RY24
Ultra Librarian 3D Model Ultra Librarian KMC5S110RY24 CAD Model

Description

The KMC5S110RY24 is a polymeric PTC resettable fuse designed for circuit protection applications. It has a maximum voltage rating of 24V and a maximum current rating of 20A.

  • Maximum Voltage: 24V
  • Maximum Current: 20A
  • Time to Trip: 500ms
  • Initial Resistance: 60mOhms
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 85°C
