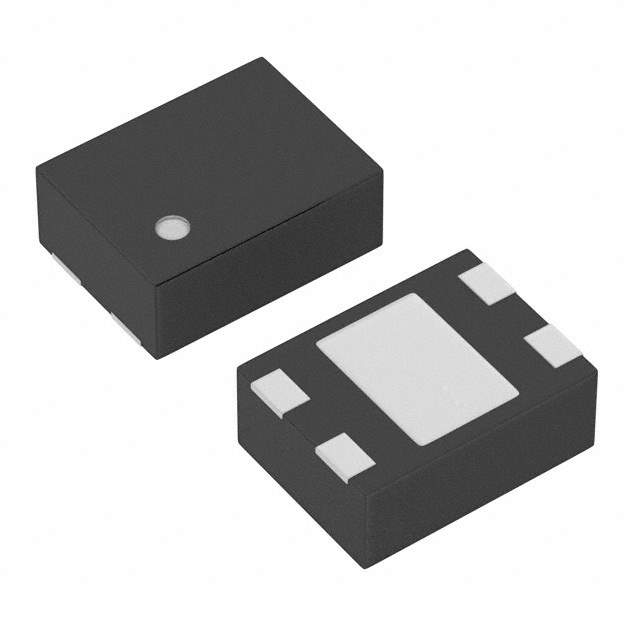

The XC6118C22AGR-G is a voltage detector IC manufactured by Torex Semiconductor. This integrated circuit is designed to precisely monitor voltage levels and generate a reset signal when the monitored voltage drops below a predefined threshold. It is commonly used in various electronic systems to prevent malfunctions and ensure data integrity during undervoltage conditions.

Applications:

• Microprocessor and Microcontroller Systems: Monitors supply voltage to ensure proper operation and prevent data corruption during voltage drops.
• Memory Devices: Protects memory contents from corruption during power failures or voltage fluctuations.
• Battery-Powered Equipment: Manages battery voltage levels, preventing deep discharge and ensuring stable operation.
• Power Management Systems: Integrates into power supply circuits to detect undervoltage conditions and trigger appropriate responses.
• Industrial Control Systems: Provides voltage monitoring for critical control circuits, enhancing system reliability.

Features:

• High-Precision Detection: Offers accurate voltage detection with tight tolerance.
• Ultra-Low Power Consumption: Minimizes current drain, extending battery life in portable applications.
• Small Package Size: Available in compact packages like SOT-25, saving valuable board space.
• Hysteresis: Prevents output chattering due to noise or voltage fluctuations near the threshold.
• Open Drain Output: Provides flexibility in interfacing with various logic circuits.

Benefits:

• Enhanced System Reliability: Prevents erratic behavior and data corruption caused by low voltage conditions.
• Extended Battery Life: Reduces power consumption, prolonging the operational time of battery-powered devices.
• Simplified Design: Integrates voltage monitoring and reset generation into a single component.
• Cost-Effective Solution: Provides a reliable and cost-efficient way to protect electronic circuits.
• Space-Saving Design: Small package size allows for compact circuit layouts.

Additional Details:

The XC6118C22AGR-G has a detection voltage of 2.2V. It is supplied in an SOT-25 package. The output configuration is N-channel open drain. The operating voltage ranges from 1.1V to 5.0V. Its supply current is typically 1.0 μA. The operating temperature range is -40°C to +85°C.
