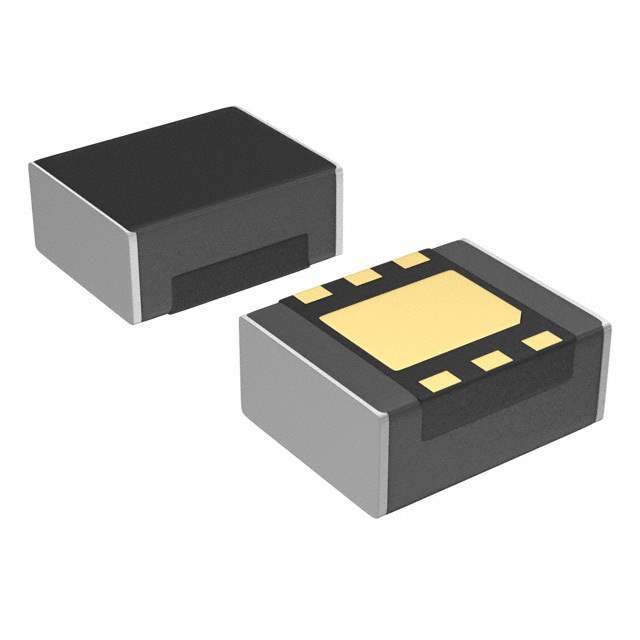

Same model may have multiple batches, images only for reference.
XCL219B123FR-G Torex Semiconductor Ltd
Same model may have multiple batches, images only for reference.

XCL219B123FR-G

Part No XCL219B123FR-G
Manufacturer Torex Semiconductor Ltd
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 1.2V
Datasheet
XCL219B123FR-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1309259-XCL219B123FR-G
Category Power Supplies - Board Mount- DC DC Converters
Mfr Torex Semiconductor Ltd
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Obsolete
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 1.2V
Current - Output (Max) 1A
Ultra Librarian 3D Model Ultra Librarian XCL219B123FR-G CAD Model

Description

The XCL219/XCL220 series is a synchronous step-down micro DC/DC converter which integrates an inductor and a control IC in one tiny package (2.0mm×2.5mm, h=1.0mm). An internal coil simplifies the circuit and enables minimization of noise and other operational trouble due to the circuit wiring. A wide operating voltage range of 2.5V to 5.5V enables support for applications that require an internally fixed output voltage (0.8V to 3.6V). The XCL219/XCL220 series uses synchronous rectification at an operating frequency of 3.0MHz. The XCL219/XCL220 series uses HiSAT-COT (*) synchronous rectification. HiSAT-COT+PWM control (XCL219) or HiSAT-COT+automatic PWM/PFM switching control (XCL220) can be selected.
