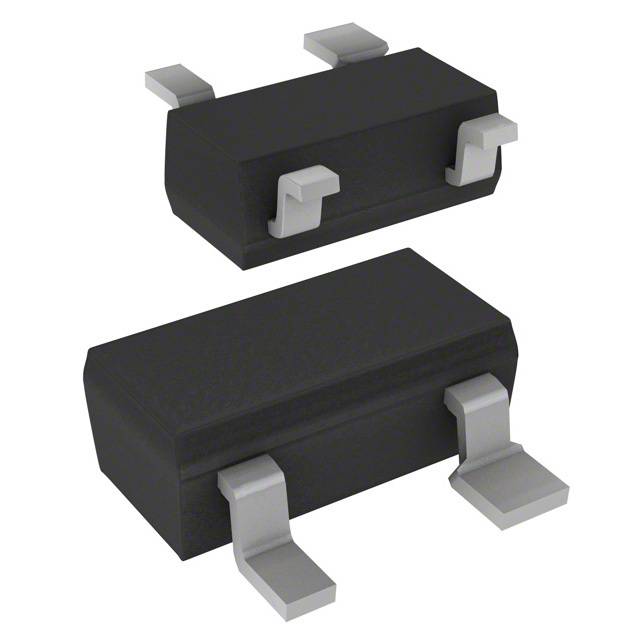

Same model may have multiple batches, images only for reference.
1SS306TE85LF Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

1SS306TE85LF

Part No 1SS306TE85LF
Manufacturer Toshiba Semiconductor and Storage
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 200V 100MA SC61B
Datasheet
1SS306TE85LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Diode Configuration 2 Independent
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) (per Diode) 100mA
Voltage - Forward (Vf) (Max) @ If 1.2V @ 100mA
Reverse Recovery Time (trr) 60ns
Current - Reverse Leakage @ Vr 1μA @ 200V
Operating Temperature - Junction 125°C (Max)
Mounting SMD (SMT)
Case / Package SC-61B
Win Source Part Number 096681-1SS306TE85LF
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 1SS306TE85LF CAD Model

Description

1SS306TE85LF

The 1SS306TE85LF is a high-performance diode known for its exceptional thermal endurance and reliability, even in rigorous operational environments. This diode is particularly useful in high-temperature applications where stability is crucial.

  • Exceptional thermal endurance
  • Reliable performance
  • Suited for high-temperature conditions

Applications

  • Automotive electronics
  • High-temperature industrial settings
  • Power supply circuits

Features and Benefits

  • Thermal Stability: Maintains consistent operation under high thermal stress.
  • Long-Term Reliability: Offers sustained performance over extended periods.
  • Versatile Use: Applicable in diverse environments, from automotive to industrial.
