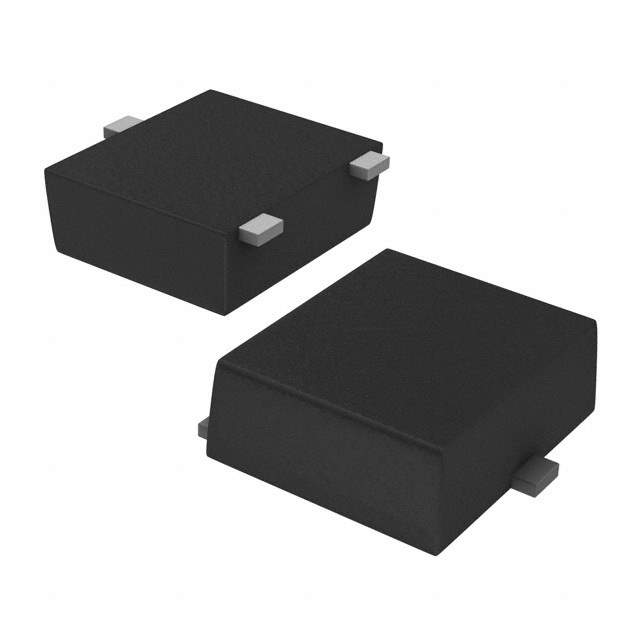

The SSM3J135TU is a P-channel MOSFET from Toshiba Semiconductor and Storage. It's designed for load switches and high-side switch applications due to its low on-resistance and fast switching speed. This MOSFET contributes to energy efficiency and miniaturization of electronic devices.

Applications

• Load switches in portable devices such as smartphones, tablets, and laptops.
• High-side switches in power management circuits.
• DC-DC converters for voltage regulation.
• Power management in battery-powered devices.

Features

• Low On-Resistance: Reduces power loss and improves efficiency. RDS(ON) = 0.135Ω (VGS = -4.5V).
• Low Threshold Voltage: Allows for efficient operation with low voltage drive.
• Small Package: Facilitates compact designs. Using a small package like SOT-23.
• High-Speed Switching: Enables faster response times in switching applications.
• Pb-free and RoHS compliant: Environmentally friendly.

Benefits

• Increased Efficiency: The low on-resistance minimizes power dissipation, leading to increased efficiency and reduced heat generation.
• Extended Battery Life: Reduced power consumption translates to longer battery life in portable devices.
• Compact Design: The small package size allows for miniaturization of electronic circuits.
• Improved Performance: Fast switching speeds improve overall system performance.
• Environmentally Responsible: RoHS compliance ensures that the product meets environmental standards.

Additional Details

The SSM3J135TU has a drain-source voltage (VDSS) rating of -30V and a gate-source voltage (VGSS) rating of ±20V. It can handle a continuous drain current (ID) of -1.8A. The power dissipation (PD) is 0.5W. The operating and storage temperature range is -55°C to 150°C. The device is available in a SOT-23 package. It is designed for applications where power efficiency and space savings are crucial. The low gate charge (Qg) contributes to the fast switching characteristics. The device's thermal resistance is low, ensuring effective heat dissipation.
