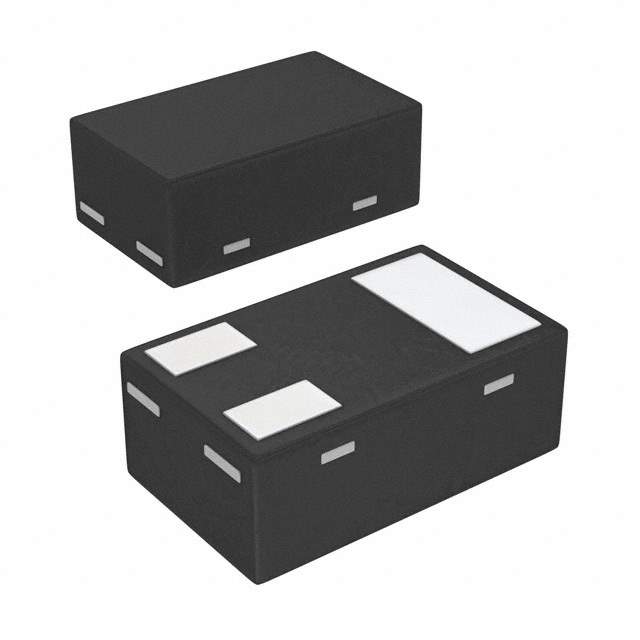

The SSM3J35CTC is a P-Channel MOSFET manufactured by Toshiba Semiconductor and Storage. It is designed for use in load switches and other power management applications, offering low on-resistance and fast switching speeds. This MOSFET is suitable for portable devices and other applications where efficiency and small size are critical.

Applications

• Load Switching: Used to control power to various loads in electronic circuits.
• Power Management Circuits: Implemented in voltage regulators and power distribution networks.
• Battery Management Systems (BMS): Employed in battery protection and charge/discharge control circuits.
• Portable Devices: Found in smartphones, tablets, and other battery-powered devices.
• DC-DC Converters: Used as a switching element in low-power DC-DC converters.

Features

• P-Channel MOSFET: Simplifies high-side switching applications.
• Low On-Resistance (RDS(on)): Minimizes power loss and improves efficiency.
• Low Gate Charge (Qg): Reduces switching losses.
• Small Package: Available in ultra-compact packages like the TSOP-6.
• Logic Level Gate Drive: Can be directly driven by logic-level signals.

Benefits

• High Efficiency: Low RDS(on) and Qg result in high efficiency in power switching applications.
• Simplified Circuit Design: P-channel configuration eases high-side switching implementation.
• Compact Size: Small package allows for high-density board designs.
• Logic Level Compatibility: Enables direct interfacing with microcontrollers and other logic devices.
• Reliable Performance: Offers stable and dependable switching performance.

Additional Details

The SSM3J35CTC typically features a drain-source voltage (VDS) rating of -20V. The gate-source voltage (VGS) rating is typically ±8V. The continuous drain current (ID) rating depends on the operating temperature and package. Thermal management is crucial to ensure the MOSFET operates within its safe operating area. The SSM3J35CTC usually comes in a small surface-mount package such as a TSOP-6. Toshiba provides detailed datasheets and application notes for proper design and implementation of this MOSFET.
