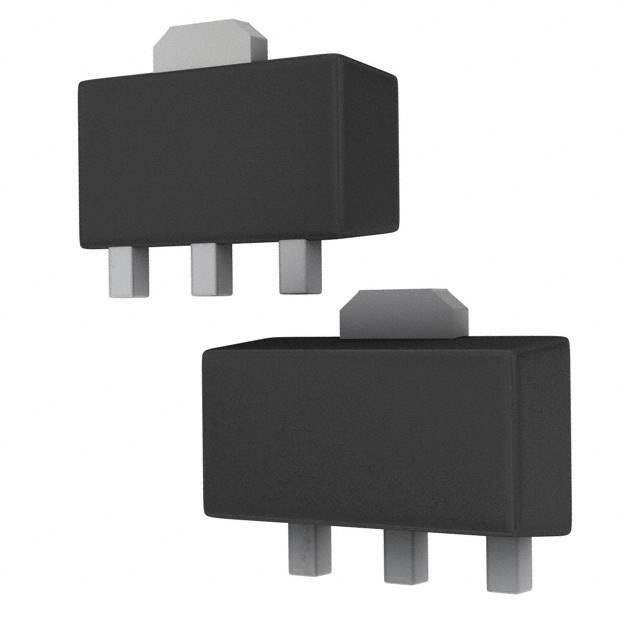

The TA78L05 is a three-terminal positive voltage regulator manufactured by Toshiba Semiconductor and Storage. It is designed to provide a stable +5V output voltage for a variety of electronic circuits. This is a commonly used regulator for general purpose applications requiring a fixed 5V supply.

Applications

• Microcontroller power supplies: Provides a regulated 5V supply for microcontrollers and related circuits.
• Logic circuits: Powers digital logic circuits requiring a stable 5V supply.
• Sensor power supplies: Provides a regulated supply for various types of sensors.
• General-purpose power regulation: Used in various electronic projects and applications requiring a stable 5V supply.
• Instrumentation: Employed in test and measurement equipment to provide a stable voltage reference.

Features

• Fixed +5V output voltage: Provides a stable and accurate 5V output.
• Internal short-circuit current limiting: Protects the regulator from damage due to short circuits.
• Thermal overload protection: Shuts down the regulator when the temperature exceeds a safe limit.
• Low quiescent current: Minimizes power consumption when the regulator is not actively supplying current.
• Available in various packages (TO-92, SO-8): Offers flexibility in mounting options.

Benefits

• Stable output voltage: Provides a consistent and reliable 5V supply.
• Overload protection: Protects the regulator and connected circuits from damage.
• Simplified design: Requires minimal external components for operation.
• Reduced power consumption: Low quiescent current minimizes power waste.
• Wide range of applications: Suitable for a wide variety of electronic circuits.

Additional Details

The TA78L05 typically requires a minimum input voltage of a few volts above the 5V output voltage to operate correctly. It can typically provide an output current of around 100mA, depending on the package and operating conditions. It's essential to consult the datasheet for the exact input voltage range, output current rating, thermal resistance, and other critical parameters such as operating temperature range and package dimensions. Different package types, such as TO-92 and SO-8, have different power dissipation capabilities. The TA78L05 is a highly reliable and cost-effective solution for providing a stable 5V supply in a wide range of applications.
