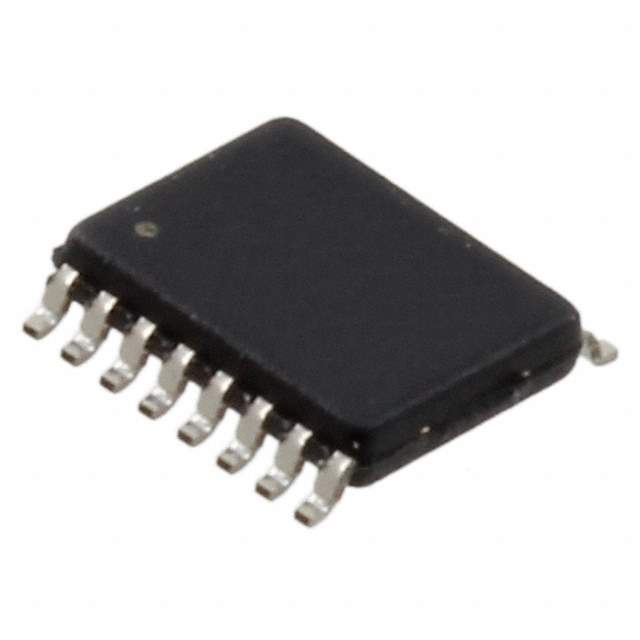

The TC74VHC221AF is a high-speed CMOS dual monostable multivibrator manufactured by Toshiba Semiconductor and Storage. This device offers two independent, retriggerable monostable multivibrators in a single package. It is designed for use in a wide range of timing and pulse generation applications.

Applications:

• Timing Circuits: Used to generate precise timing intervals in various electronic systems.
• Pulse Generation: Employed in circuits that require accurate pulse widths for control or triggering purposes.
• Delay Circuits: Implemented to create specific delays in signal paths.
• Missing Pulse Detection: Used to detect the absence of pulses within a specified time frame.
• Switch Debouncing: Applied to eliminate unwanted bouncing effects from mechanical switches.

Features:

• Dual Monostable Multivibrators: Contains two independent monostable multivibrators in a single package.
• Retriggerable Operation: Allows for extending the output pulse width by retriggering the input before the timeout period expires.
• Wide Supply Voltage Range: Operates over a wide voltage range, typically from 2V to 5.5V.
• High-Speed Operation: Offers fast switching speeds due to its advanced CMOS technology.
• Low Power Consumption: Consumes very little power, making it suitable for battery-powered applications.
• Schmitt-Trigger Inputs: Provides high noise immunity due to Schmitt-trigger inputs.
• Output Pulse Width Control: Adjustable output pulse width using external resistor and capacitor.

Benefits:

• Versatile: Suitable for a wide range of timing and pulse generation applications.
• Precise Timing: Offers accurate and stable output pulse widths.
• Easy to Use: Simple to implement in circuits with minimal external components.
• Reliable: Provides reliable operation over a wide range of environmental conditions.
• Cost-Effective: Offers a cost-effective solution for timing and pulse generation needs.

Additional Details:

The TC74VHC221AF requires an external resistor (Rext) and capacitor (Cext) to set the output pulse width. The pulse width (tw) is approximately equal to Rext * Cext. The device is available in various package options, including SOP (Small Outline Package) and TSSOP (Thin Shrink Small Outline Package). It is commonly used in digital circuits, microcontrollers, and other electronic systems requiring precise timing control.
