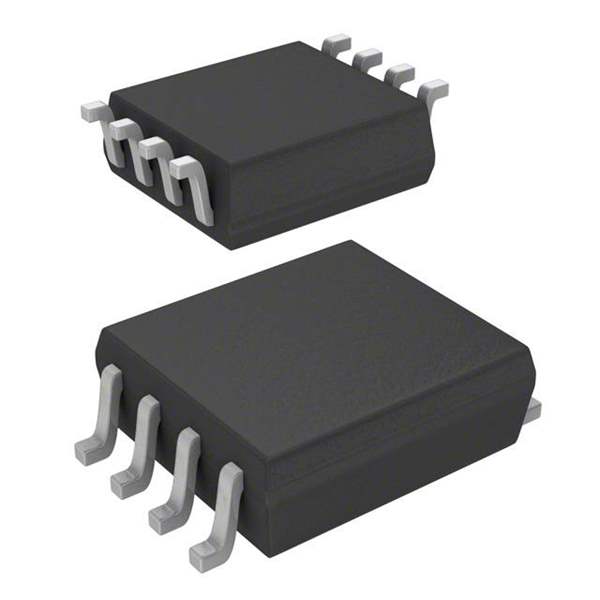

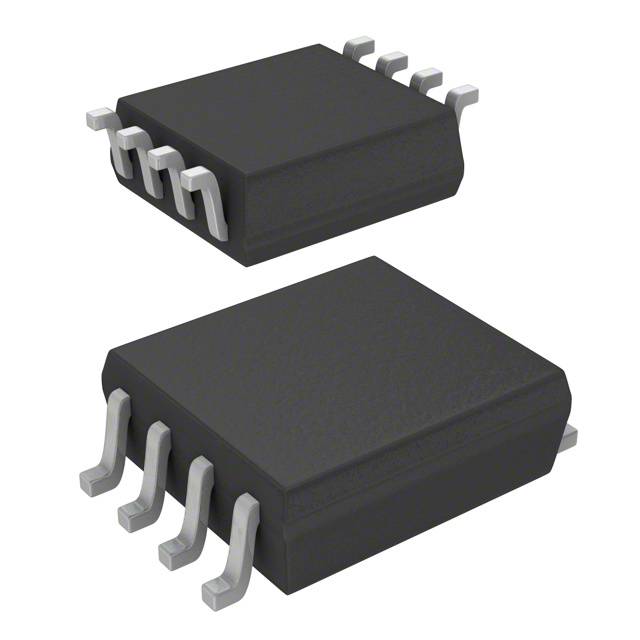

TC7WU04FU-F Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TC7WU04FU-F

Part No TC7WU04FU-F
Manufacturer Toshiba Semiconductor and Storage
Catalog Logic - Gates and Inverters
Description Inverter IC 3 Channel SM8
Datasheet
TC7WU04FU-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits(ICs)
Family Logic - Gates and Inverters
Manufacturer Toshiba Semiconductor and Storage
Series TC7WU
Logic Type Inverter
Number of Circuits 3
Number of Inputs 3
Operating Supply Voltage 2 V ~ 6 V
Current - Quiescent (Max) 1μA
Current - Output High, Low 5.2mA, 5.2mA
Logic Level - Low 0.3 V ~ 1.2 V
Logic Level - High 1.7 V ~ 4.8 V
Max Propagation Delay @ V, Max CL 10ns @ 6V, 50pF
Operating Temperature Range -40°C ~ 85°C
Mounting Style SMD/SMT
Manufacturer Device Package SM8
Package 8-TSSOP, 8-MSOP (0.110", 2.80mm Width)
Win Source Part Number 215336-TC7WU04FU-F
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian TC7WU04FU-F CAD Model

Description

The Toshiba Semiconductor and Storage TC7WU04FU-F is an integrated circuit with a logic type of inverter and three number of inputs.

  • Operating Supply Voltage: 2 V ~ 6 V
  • Maximum Propagation Delay: 10ns @ 6V, 50pF
  • Application: industrial application field
