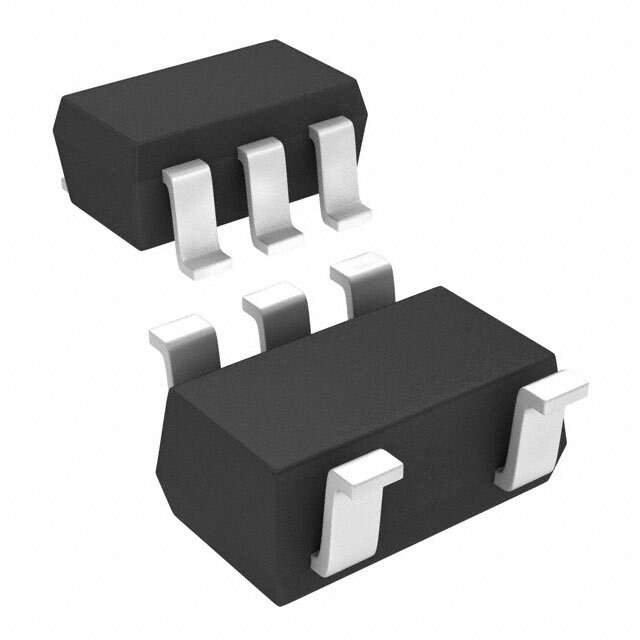

The TCR3DF295 is a low-dropout (LDO) regulator manufactured by Toshiba Semiconductor and Storage. LDO regulators are designed to provide a stable and regulated output voltage even when the input voltage is close to the desired output voltage. This makes them ideal for battery-powered devices and other applications where voltage headroom is limited.

Applications:

• Battery-Powered Devices: Powers microcontrollers, sensors, and other components in portable devices.
• Post-Regulation: Provides clean and stable voltage rails after a switching regulator.
• Noise-Sensitive Circuits: Reduces noise and ripple in voltage supplies for sensitive analog and digital circuits.
• Microcontroller Power Supplies: Provides a stable and regulated voltage for microcontrollers.

Features:

• Low Dropout Voltage: Maintains regulation even with a small difference between input and output voltage.
• Low Quiescent Current: Minimizes power consumption in standby mode.
• Small Package Size: Allows for compact circuit designs.
• Built-in Overcurrent Protection: Protects the regulator and the load from damage due to excessive current.

Benefits:

• Extended Battery Life: Reduces power consumption and increases the operating time of battery-powered devices.
• Improved System Performance: Provides a stable and regulated voltage supply for sensitive electronic components.
• Simplified Design: Reduces the complexity of power supply design.
• Enhanced Reliability: Protects circuits from damage due to overcurrent conditions.

Technical Specifications:

The TCR3DF295 typically has an output voltage of 2.95V. Its key specifications include the dropout voltage, quiescent current, and maximum output current. Refer to the datasheet for specific values and operating conditions.
