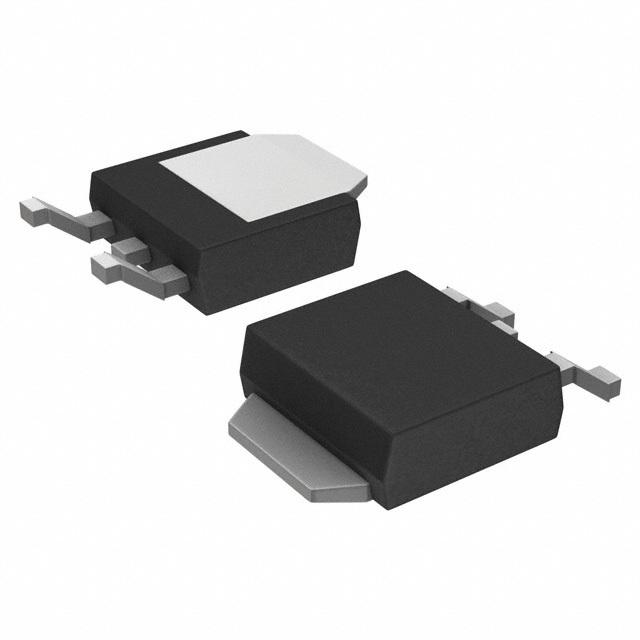

TK12P60W,RVQ Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TK12P60W,RVQ

Part No TK12P60W,RVQ
Manufacturer Toshiba Semiconductor and Storage
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N CH 600V 11.5A DPAK
Datasheet
TK12P60W,RVQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 600V
Continuous Drain Current at 25°C 11.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 3.7V @ 600μA
Max Gate Charge 25nC @ 10V
Max Input Capacitance 890pF @ 300V
Maximum Gate-Source Voltage ±30V
FET Feature Super Junction
Power Dissipation (Max) 100W (Tc)
Maximum Rds On at Id,Vgs 340 mOhm @ 5.8A, 10V
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package DPAK
Dimension TO-252-3, DPak (2 Leads + Tab), SC-63
Win Source Part Number 128472-TK12P60W,RVQ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TK12P60W,RVQ CAD Model

Description

The TK12P60W,RVQ is a high-voltage Super Junction MOSFET from Toshiba Semiconductor and Storage.

  • Drain-Source Breakdown Voltage: 600V
  • Maximum Continuous Drain Current: 11.5A @ 25°C
  • Features: Low on-resistance and gate charge, making it suitable for high-frequency switching applications
  • Maximum Input Capacitance: 890pF @ 300V
  • Gate-Source Threshold Voltage: 3.7V @ 600μA
  • Package: Surface mount DPAK package
