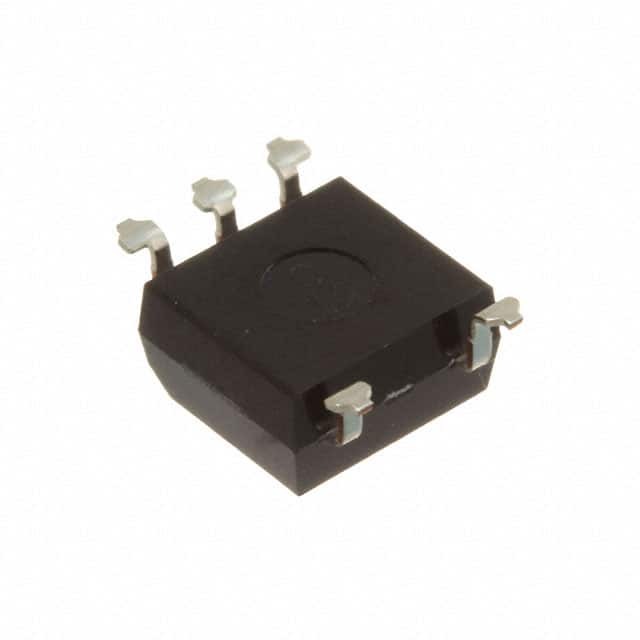

TLP3052A(TP1,F Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP3052A(TP1,F

Part No TLP3052A(TP1,F
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Triac, SCR Output
Description OPTO TRIAC COUPLER; NON-ZERO-VOL / Optoisolator Triac Output 5000Vrms 1 Channel 6-SO, 5 Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Triac, SCR Output
Mfr Toshiba Semiconductor and Storage
Package Tape & Reel (TR)
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Voltage - Isolation 5000Vrms
Voltage - Off State 600 V
Static dV/dt (Min) 2000V/µs (Typ)
Current - LED Trigger (Ift) (Max) 10mA
Current - On State (It (RMS)) (Max) 100 mA
Current - Hold (Ih) 600µA (Typ)
Voltage - Forward (Vf) (Typ) 1.15V
Current - DC Forward (If) (Max) 50 mA
Temperature Range - Operating -40°C ~ 100°C
Mounting SMD (SMT)
Package / Case 6-SMD (5 Leads), Gull Wing
Supplier Device Package 6-SO, 5 Lead
Approval Agency CQC, cUR, UR
Base Product Number TLP3052
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.49.8000
Other Names TLP3052A(TP1F
Standard Package 1,500
Win Source Part Number 1201533-TLP3052A(TP1,F
Ultra Librarian 3D Model Ultra Librarian TLP3052A(TP1,F CAD Model

Description

This optoisolator with triac and SCR output is a part of the HN3C51F-BL family and is manufactured by Toshiba Semiconductor and Storage.

  • Maximum Forward Current: 50 mA
  • Forward Voltage: 1.15V
  • Off-State Voltage: 600V
  • Maximum On-State Current: 100 mA
  • Channel Count: One Channel
  • Voltage Isolation: 5000Vrms
  • Device Package: 6-SMD (5 Leads), Gull Wing
  • Operating Temperature Range: -40°C to 100°C
