The TLP3062A is a Phototriac Coupler manufactured by Toshiba Semiconductor and Storage. This device consists of a gallium arsenide infrared emitting diode optically coupled to a photo triac. It is designed for applications requiring isolated switching of AC loads. This optocoupler offers a high isolation voltage and is suitable for controlling various AC loads such as motors, solenoids, and lamps. The key difference from the TLP3052A is a higher voltage rating.

Applications

• Solid State Relays (SSR): Used as a driver for solid-state relays, providing electrical isolation between the control circuit and the load.
• AC Motor Control: Employed in controlling small AC motors, offering isolated switching capabilities.
• Lighting Control: Used in lighting control systems for dimming and switching applications.
• Solenoid Control: Applied in solenoid control circuits for industrial automation and control systems.
• Heater Control: Utilized in heater control applications, providing isolated switching for temperature regulation.

Features

• High Isolation Voltage: Offers high isolation voltage between the input and output, ensuring safety and preventing electrical interference.
• Zero-Crossing Detection: Incorporates zero-crossing detection circuitry to minimize switching noise and inrush current.
• High Repetitive Peak Off-State Voltage: Provides high repetitive peak off-state voltage, ensuring reliable performance in high-voltage applications.
• Low Trigger Current: Requires low trigger current for activation, making it compatible with low-power control circuits.
• Compact Package: Available in a compact package for space-saving design.

Benefits

• Electrical Isolation: Provides electrical isolation between the control circuit and the AC load, protecting sensitive control circuits from high voltage and current.
• Reduced Switching Noise: Zero-crossing detection minimizes switching noise, improving the performance of sensitive electronic equipment.
• Improved Reliability: High isolation voltage and repetitive peak off-state voltage contribute to the device's overall reliability.
• Energy Efficiency: Low trigger current reduces power consumption in the control circuit.
• Simplified Design: Compact package simplifies circuit design and reduces board space.

Additional Details

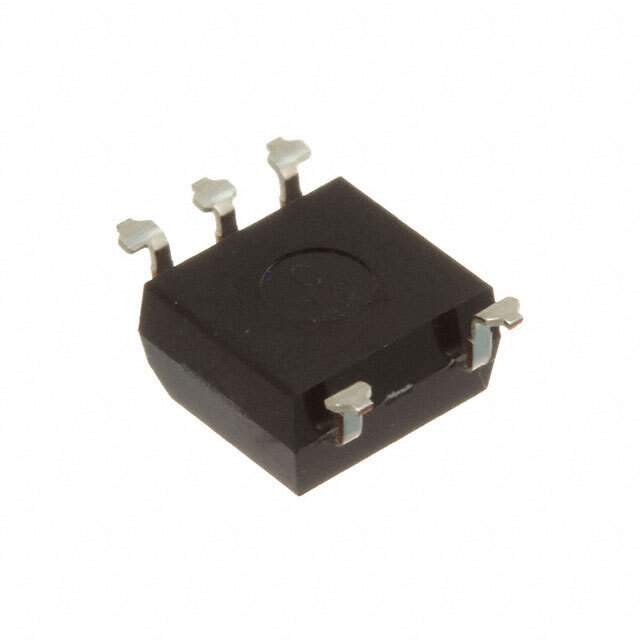

The TLP3062A is typically packaged in a 6-pin DIP (Dual In-Line Package) or SMD (Surface Mount Device) package. A DC input voltage is needed to activate the infrared LED, which subsequently triggers the photo triac to switch the AC load. The zero-crossing detection ensures that the triac switches at or near the zero-voltage point of the AC waveform, minimizing transient voltages and electromagnetic interference (EMI). Key parameters include isolation voltage, on-state current, off-state voltage, and trigger current, which characterize the device's performance. Datasheets specify recommended operating conditions and application circuits to ensure proper and reliable operation and compliance with safety standards. Proper heat sinking may be necessary depending on the load current and operating conditions.
