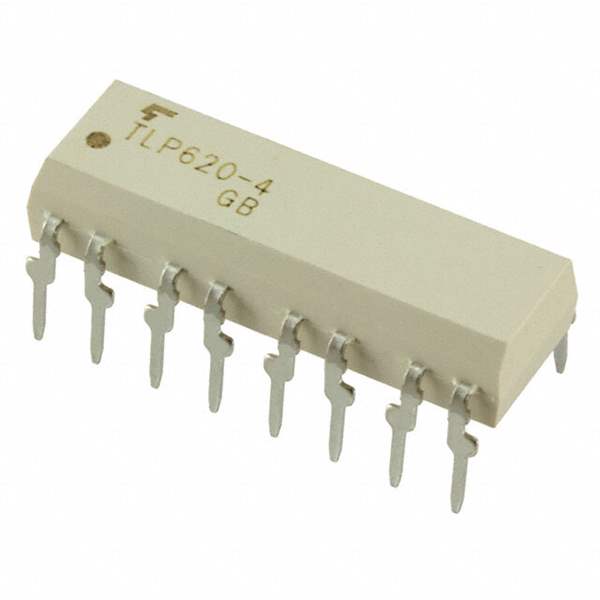

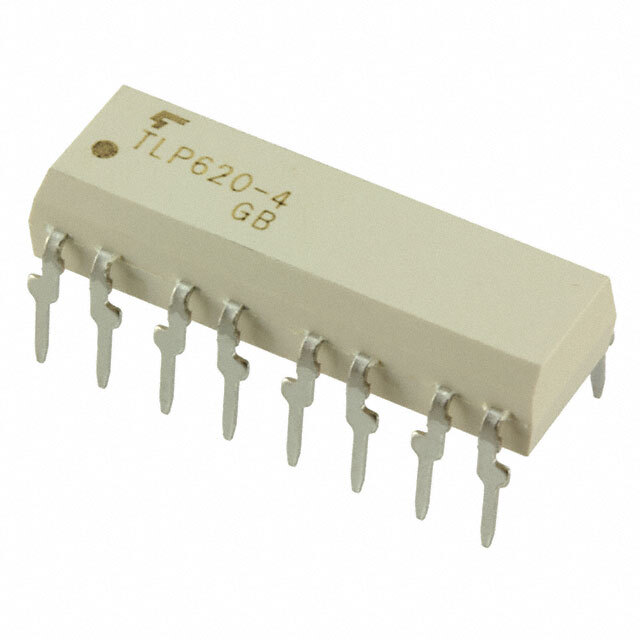

The TLP620-4(GB,F) is a quad-channel, general-purpose phototransistor optocoupler from Toshiba Semiconductor and Storage. It provides electrical isolation between the input and output circuits, making it suitable for a wide range of applications requiring signal transfer without direct electrical connection. This optocoupler is known for its high isolation voltage, compact size, and reliable performance.

Applications

• Programmable Logic Controllers (PLCs): Isolating input and output modules.
• Factory Automation Equipment: Providing electrical isolation in control systems.
• Measuring Instruments: Enhancing safety and accuracy by isolating measurement circuits.
• Office Automation Equipment: Protecting sensitive electronics from voltage transients and noise.
• Telecommunication Equipment: Isolating communication lines to prevent ground loops and voltage surges.
• Power Supplies: Providing feedback isolation in switching power supplies.

Features

• Quad-Channel Configuration: Integrates four independent optocoupler channels in a single package.
• High Isolation Voltage: Offers a high isolation voltage of 5000 Vrms, providing robust electrical isolation.
• Compact Package: Space-saving design facilitates easy integration into dense circuit boards.
• High Current Transfer Ratio (CTR): Ensures efficient signal transfer between the input and output circuits.
• UL, CSA, and VDE Approvals: Meets stringent safety standards for various applications.
• RoHS Compliant: Complies with the Restriction of Hazardous Substances directive.

Benefits

• Enhanced Safety: Provides robust electrical isolation, protecting users and equipment from high voltages.
• Noise Immunity: Reduces the impact of electrical noise and interference on signal integrity.
• Simplified Circuit Design: Integrates multiple channels into a single package, reducing component count and board space.
• Improved Reliability: Offers stable and consistent performance, enhancing the reliability of electronic systems.
• Versatile Application: Suitable for a wide range of applications requiring electrical isolation.

Additional Details

The TLP620-4(GB,F) features a forward current (IF) of 50 mA and a collector-emitter voltage (VCEO) of 80 V. Its operating temperature range typically spans from -55°C to +100°C. The device is housed in a DIP-16 package. The 'GB' in the part number may refer to specific taping or packaging options, while '(F)' indicates compliance with RoHS standards. Detailed electrical characteristics and application-specific recommendations can be found in the manufacturer's datasheet.
