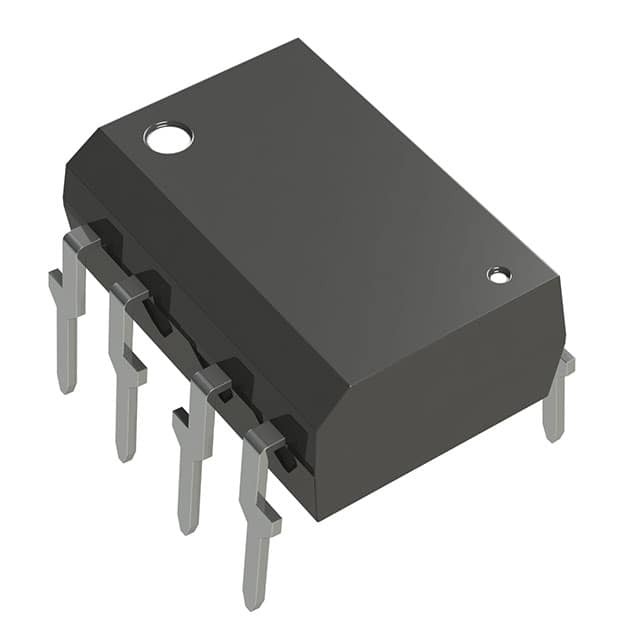

TLP759(TP1,J,F) Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP759(TP1,J,F)

Part No TLP759(TP1,J,F)
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Transistor, Photovoltaic Output
Description PHOTOCOUPLER LOGIC 8DIP GW / Optoisolator Transistor Output 5000Vrms 1 Channel 8-DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr Toshiba Semiconductor and Storage
Package Tape & Reel (TR)
Product Status Last Time Buy
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 20% @ 16mA
Turn On / Turn Off Time (Typ) 200ns, 300ns
Input Type DC
Output Type Transistor
Voltage - Output (Max) 20V
Current - Output / Channel 8mA
Voltage - Forward (Vf) (Typ) 1.65V
Current - DC Forward (If) (Max) 25 mA
Temperature Range - Operating -55°C ~ 100°C
Mounting Type Through Hole
Package / Case 8-DIP (0.300", 7.62mm)
Supplier Device Package 8-DIP
Base Product Number TLP759
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.49.8000
Other Names TLP759(TP1JF)
Standard Package 1,500
Win Source Part Number 991307-TLP759(TP1,J,F)
Ultra Librarian 3D Model Ultra Librarian TLP759(TP1,J,F) CAD Model

Description

The Toshiba Semiconductor and Storage TLP759(TP1,J,F) optoisolator from Toshiba Semiconductor and Storage is an electronic component designed for use in isolator applications.

  • Category: Optoisolators - transistor, photovoltaic output
  • Output Type: Transistor
  • Input Type: DC
  • Maximum DC Forward Current: 25mA
  • Typical Forward Voltage: 1.65V
  • Current Output: 8mA
  • Channel: Single
  • Isolation Voltage: 5000Vrms
  • Minimum Current Transfer Ratio: 20% @ 16mA
  • Maximum Output Voltage: 20V
  • Mounting Type: Through-Hole
  • Package/Case: 8-DIP (0.300", 7.62mm)
  • Temperature Range: -55°C to 100°C
