The TPCF8A01 is an N-channel power MOSFET manufactured by Toshiba Semiconductor and Storage. It is designed for high-efficiency switching applications and features a low on-resistance to minimize power losses.

Applications:

• DC-DC converters
• Load switches
• Power management circuits
• Motor control circuits
• Backlight inverters

Features:

• VDSS: 30V - Drain-source voltage rating of 30V.
• ID: 6A - Continuous drain current of 6A.
• RDS(on): 24 mΩ (at VGS = 10 V) - Low on-resistance for efficient power switching.
• Gate Charge (Qg): 7.2 nC (typical) - Low gate charge reduces switching losses.
• Small Footprint: Available in a small surface-mount package for space-saving designs.
• RoHS compliant - Environmentally friendly, adhering to RoHS standards.

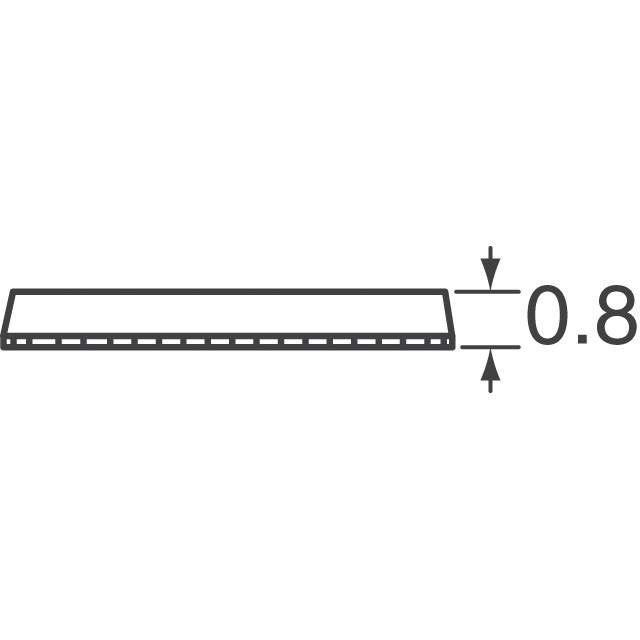

• TSSOP-8 package - Surface mount package.

Benefits:

• High Efficiency: Low RDS(on) minimizes conduction losses, resulting in high efficiency.
• Compact Design: Small package allows for space-saving designs.
• Reduced Heat Dissipation: Lower on-resistance leads to less heat generation.
• Improved System Performance: Faster switching speeds and lower losses contribute to better overall system performance.
• Reliable operation: Ensures stable performance in various applications.

Additional Details:

The TPCF8A01 is designed for applications where efficiency and space are critical considerations. Its low gate charge contributes to fast switching speeds, further minimizing switching losses. The small surface-mount package allows for high-density board layouts. This MOSFET is suitable for use in a wide range of portable devices, power supplies, and other power management applications. Its characteristics make it an excellent choice for applications where energy efficiency is a primary concern.
