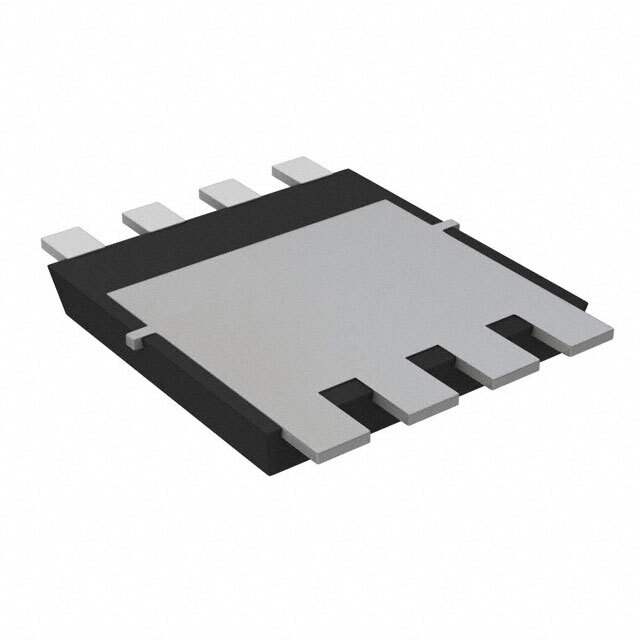

TPWR8503NL,L1Q

Name: TPWR8503NL,L1Q
Brand: Toshiba Semiconductor and Storage
SKU: 846303
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TPWR8503NL,L1Q
Manufacturer	Toshiba Semiconductor and Storage
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 30V 150A 8DSOP / N-Channel 30 V 150A (Tc) 800mW (Ta), 142W (Tc) Surface Mount 8-DSOP Advance
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Toshiba Semiconductor and Storage
Series	U-MOSVIII-H
Package	Tape & Reel
Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	150A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	0.85mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	74 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6900 pF @ 15 V
Power Dissipation (Max)	800mW (Ta), 142W (Tc)
Temperature Range - Operating	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DSOP Advance
Package / Case	8-PowerWDFN
Base Product Number	TPWR8503
Standard Package	5,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	846303-TPWR8503NL,L1Q
Ultra Librarian 3D Model	Ultra Librarian TPWR8503NL,L1Q CAD Model

Alternative Products

Description

The 846303-TPWR8503NL,L1Q is a N-Channel MOSFET transistor from Toshiba Semiconductor and Storage.

Series: U-MOSVIII-H
Function: Transistor - FET
Vdss: 30 V
Id @ 25°C: 150A
Rds On: 0.85mOhm
Vgs(th): 2.3V
Mounting Type: Surface Mount
Package: 8-PowerWDFN
Power Dissipation: 800mW
Qg: 74nC
Operating Temperature: -30°C to 150°C
