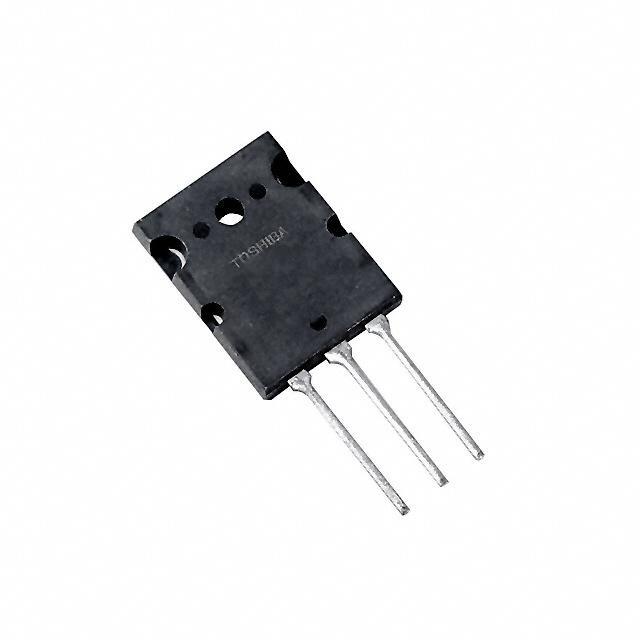

TTA1943(Q) Toshiba Semiconductor and Storage TTA1943(Q) label picture
Same model may have multiple batches, images only for reference.
TTA1943(Q) Toshiba Semiconductor and Storage TTA1943(Q) label picture
TTA1943(Q) Toshiba Semiconductor and Storage TTA1943(Q) label picture
Same model may have multiple batches, images only for reference.

TTA1943(Q)

Part No TTA1943(Q)
Manufacturer Toshiba Semiconductor and Storage
Catalog Transistors (BJT) - Single
Description TRANS PNP 230V 15A TO-3PL / Trans GP BJT PNP 230V 15A 150000mW 3-Pin(3+Tab) TO-3PL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Toshiba Semiconductor and Storage
Packaging Tube
Transistor Type PNP
Current - Collector (Ic) (Maximum) 15A
Voltage - Collector Emitter Breakdown (Maximum) 230V
Vce Saturation (Maximum) @ Ib, Ic 3V @ 800mA, 8A
Current - Collector Cutoff (Maximum) 5μA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 80 @ 1A, 5V
Power - Max 150W
Frequency - Transition 30MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TO-3PL
Manufacturer Package TO-3P(L)
Win Source Part Number 798523-TTA1943(Q)
Popularity Medium
Supply and Demand Status Balance
Family Name TTA1943
Introduction Date July 13, 2009
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian TTA1943(Q) CAD Model

Description

The Toshiba Semiconductor and Storage TTA1943(Q) is a medium popularity transistor type component.

  • Package: TO-3PL
  • Maximum Power: 150W
  • Transistor Type: PNP
  • Frequency Transition: 30MHz
  • Current Collector (Ic) Maximum: 15A
  • Voltage Collector Emitter Breakdown (Maximum): 230V
  • Supply and Demand Status: In Balance
  • Alternative Parts: 2STA1943, 2STA1962, 2SA1962O, 2STA2121
  • Estimated EOL Date: 2027
