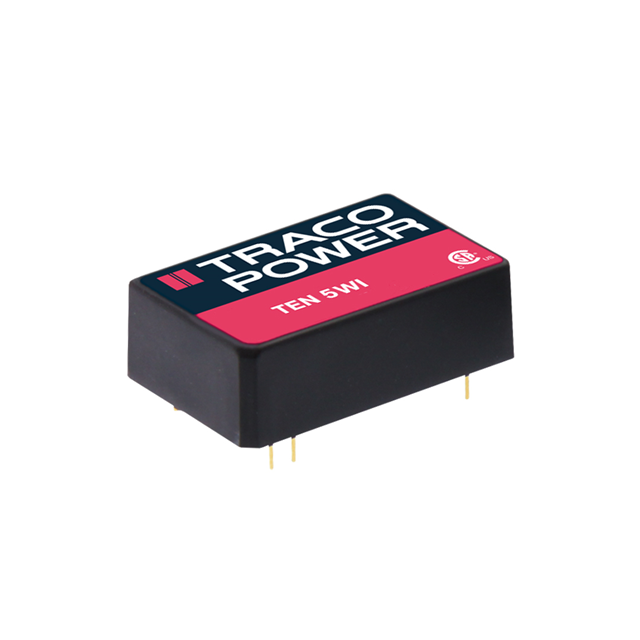

The TEN5-2413WI is a 5 Watt isolated DC/DC converter manufactured by TRACO Electronic AG. It is designed to provide a regulated output voltage from a DC input voltage, while providing galvanic isolation between the input and output. This makes it suitable for a wide range of applications where isolation and voltage conversion are required.

Applications

• Industrial automation
• Instrumentation
• Medical equipment
• Transportation systems
• Distributed power systems
• Telecommunications equipment

Features

• 5 Watt output power
• 2:1 wide input voltage range (18-36VDC)
• Regulated output voltage (typically +/-15VDC, but could be different depending on model variant)
• 1500 VDC isolation
• Continuous short circuit protection
• Remote On/Off control
• Operating temperature range: -40°C to +85°C
• Industry standard pinout
• 3-year product warranty

Benefits

• Galvanic isolation: Protects sensitive circuits from voltage spikes and ground loops.
• Wide input voltage range: Accommodates variations in input voltage.
• Regulated output voltage: Provides a stable output voltage, even with variations in input voltage or load current.
• Short circuit protection: Protects the converter and connected circuits from damage.
• Remote On/Off control: Allows for convenient power control.
• Wide operating temperature range: Suitable for harsh environments.
• Reliable operation: Ensures long-term performance.

Additional Details

The TEN5-2413WI DC/DC converter is typically used to power analog circuits, sensors, and other sensitive components that require a clean and isolated power supply. The 2:1 input voltage range allows the converter to operate from various DC sources, such as batteries or regulated power supplies. The isolation barrier prevents ground loops and protects against voltage transients. The short-circuit protection feature ensures that the converter will not be damaged in the event of an output short circuit. The remote On/Off control pin can be used to enable or disable the converter remotely, saving power when the connected circuits are not in use. The converter is designed to meet relevant safety standards. Refer to the datasheet for detailed specifications, application notes, and safety certifications.
