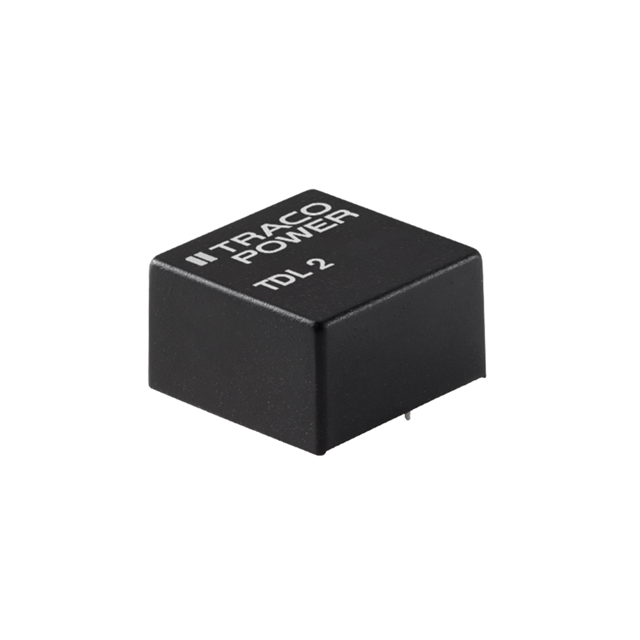

TDL 2-0522 Real Image
Same model may have multiple batches, images only for reference.

TDL 2-0522

Part No TDL 2-0522
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 2W / Isolated Module DC DC Converter 2 Output 12V -12V 83mA, 83mA 4.5V - 10V Input
Datasheet
TDL 2-0522 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 10V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 83mA, 83mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 70°C
Efficiency 85%
Mounting Through Hole
Case / Package 7-DIP Module, 5 Leads
Size / Dimension 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
Base Product Number TDL 2
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 2266-TDL 2-0522,TDL 2-0522-ND,TDL2-0522
Standard Package 10
Win Source Part Number 1335339-TDL 2-0522
Ultra Librarian 3D Model Ultra Librarian TDL 2-0522 CAD Model

Description

This isolated module DC/DC converter from Traco Power is designed for use in ITE (Commercial) applications.

  • Voltage Isolation: 1.5kV
  • Output Current (Max per output): 83mA
  • Packaging: Tube
  • Mounting: Through-Hole
  • Power Rating: 2W
  • Standard Package: 10
  • Voltage Input Range: 4.5V to 10V
  • Output Voltage: 12V and -12V
  • Case/Package: 7-DIP Module, 5 Leads
  • Operating Temperature: -40°C to 70°C
