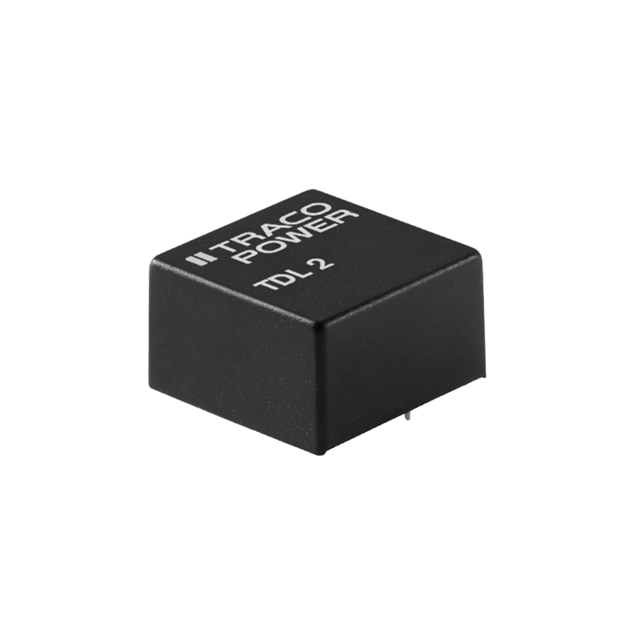

Same model may have multiple batches, images only for reference.

TDL 2-2423

Name: TDL 2-2423
Brand: Traco Power
SKU: 1335358
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TDL 2-2423
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 2W / Isolated Module DC DC Converter 2 Output 15V -15V 67mA, 67mA 18V - 36V Input
Datasheet	TDL 2-2423 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Product Status	Not For New Designs
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	67mA, 67mA
Power (Watts)	2 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 70°C
Efficiency	86%
Mounting	Through Hole
Case / Package	7-DIP Module, 5 Leads
Size / Dimension	0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
Base Product Number	TDL 2
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TDL2-2423,TDL 2-2423-ND
Standard Package	10
Win Source Part Number	1335358-TDL 2-2423
Ultra Librarian 3D Model	Ultra Librarian TDL 2-2423 CAD Model

Alternative Products

Description

The Traco Power TDL 2-2423 is an isolated module DC-DC converter with a power rating of 2W.

Package: 7-DIP module, 5 leads
Size: 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
Features: SCP
Applications: ITE (Commercial)
Standard Package: 10 units
Mounting: Through hole
Outputs: 2
Current Output: 67mA each
Isolation Voltage: 1.5 kV
Input Voltage: 18V to 36V
Output Voltage: 15V and -15V
Efficiency: 86%
Operating Temperature: -40°C to 70°C
Status: Not for new designs
ROHS Compliance: ROHS3 compliant
