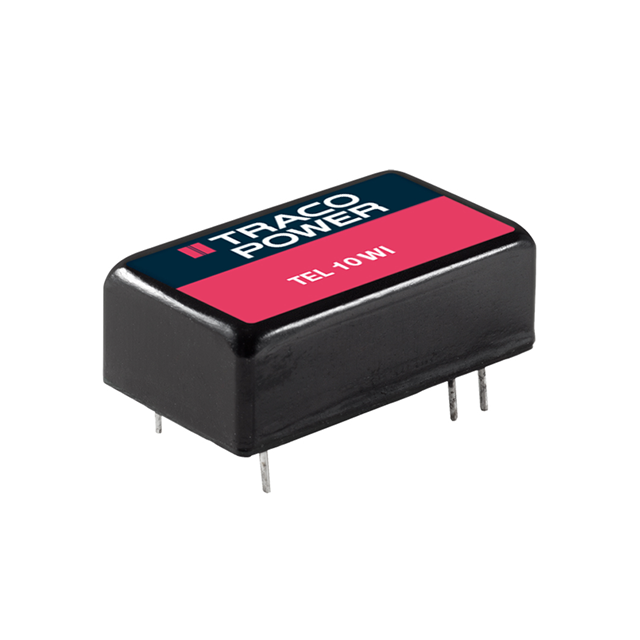

TEL 10-4811WI Real Image
Same model may have multiple batches, images only for reference.

TEL 10-4811WI

Part No TEL 10-4811WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5.1V 10W / Isolated Module DC DC Converter 1 Output 5.1V 2A 18V - 75V Input
Datasheet
TEL 10-4811WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 5.1V
Current - Output (Max) 2A
Power (Watts) 10 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 80°C (With Derating)
Efficiency 83%
Mounting Through Hole
Case / Package 16-DIP Module, 6 Leads
Size / Dimension 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm)
Base Product Number TEL 10
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-1515
Standard Package 10
Win Source Part Number 1335563-TEL 10-4811WI
Ultra Librarian 3D Model Ultra Librarian TEL 10-4811WI CAD Model

Description

The Traco Power 1335563-TEL 10-4811WI is an isolated module DC-DC converter with a power of 10W and a voltage isolation of 1.5 kV.

  • Outputs: 1 output
  • Current Output: 2A
  • Input Voltage Range: 18V to 75V
  • Output Voltage 1: 5.1V
  • Mounting: Through-hole
  • Size: 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm)
  • Operating Temperature: -40°C ~ 80°C (With Derating)
  • Applications: ITE (Commercial)
