Same model may have multiple batches, images only for reference.

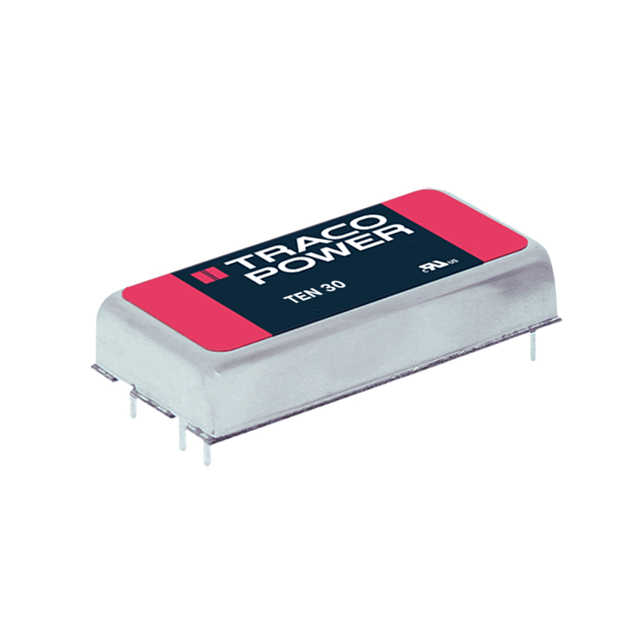

TEN 30-2423 Real Image
Same model may have multiple batches, images only for reference.

TEN 30-2423

Part No TEN 30-2423
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 30W / Isolated Module DC DC Converter 2 Output 15V -15V 1A, 1A 18V - 36V Input
Datasheet
TEN 30-2423 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series TEN 30 (30W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 1A, 1A
Power (Watts) 30 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 90%
Mounting Type Through Hole
Package / Case 6-DIP Module
Dimension 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package Module
Base Product Number TEN 30
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1951-2149
Standard Package 10
Win Source Part Number 1029737-TEN 30-2423
Ultra Librarian 3D Model Ultra Librarian TEN 30-2423 CAD Model

Description

The Traco Power TEN 30-2423 is a 30W Isolated Module DC-DC Converter with Remote On/Off, OCP, OTP, OVP, SCP, UVLO features.

  • Power: 30W
  • Features: Remote On/Off, OCP, OTP, OVP, SCP, UVLO
  • Outputs: 2
  • Voltage - Output 1: 15V
  • Voltage - Output 2: -15V
  • Voltage - Isolation: 1.5 kV
  • Efficiency: 90%
  • Mounting Type: Through Hole
  • Package: 6-DIP Module
  • Category: Power Supplies - Board Mount>DC DC Converters
  • Compliances: ECCN, REACH, MSL Level
