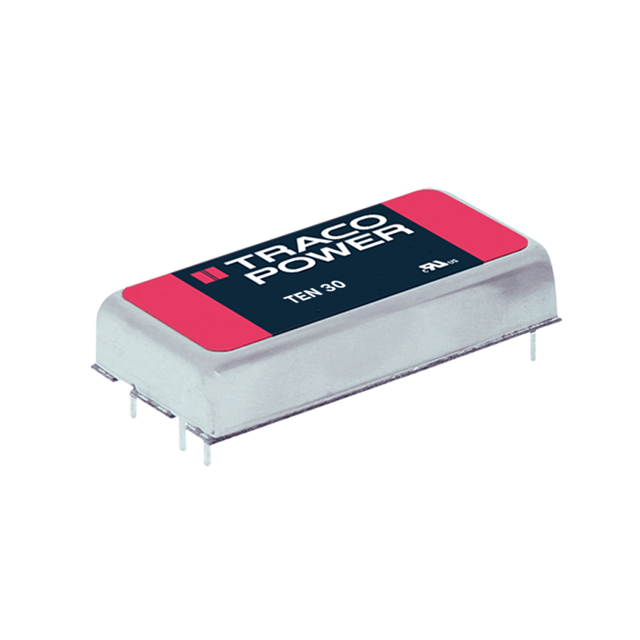

Same model may have multiple batches, images only for reference.

TEN 30-4823

Name: TEN 30-4823
Brand: Traco Power
SKU: 1227467
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	TEN 30-4823
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 30W / Isolated Module DC DC Converter 2 Output 15V -15V 1A, 1A 36V - 75V Input
Datasheet	TEN 30-4823 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Traco Power
Series	TEN 30 (30W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	1A, 1A
Power (Watts)	30 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	89%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package	Module
Base Product Number	TEN 30
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	TEN 30-4823-ND,TEN30-4823
Standard Package	10
Win Source Part Number	1227467-TEN 30-4823
Ultra Librarian 3D Model	Ultra Librarian TEN 30-4823 CAD Model

Alternative Products

Description

This electronic component is a power supply that is board mountable and isolated and is part of the TEN 30 (30W) series manufactured by .

Series: TEN 30 (30W)
Win Source Part Number: 1227467-TEN 30-4823
Output Count: Two
Maximum Current Output: 1A each
Efficiency: 89%
Input Voltage Range: 36V to 75V
Output Voltage: 15V and -15V
Remote On/Off: Yes
Protection Features: Overcurrent, Overtemperature, Overvoltage, Short Circuit, and Undervoltage Lockout
REACH: Unaffected
ECCN: EAR99
