Same model may have multiple batches, images only for reference.

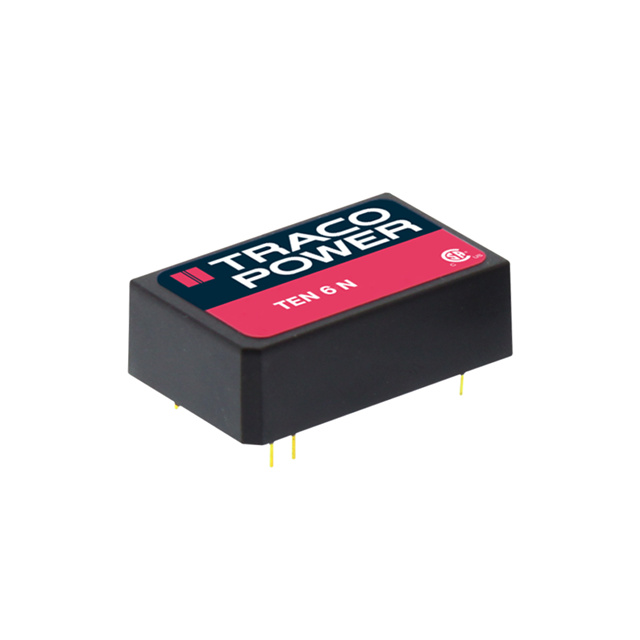

TEN 6-2421N Real Image
Same model may have multiple batches, images only for reference.

TEN 6-2421N

Part No TEN 6-2421N
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 5W / Isolated Module DC DC Converter 2 Output 5V -5V 500mA, 500mA 18V - 36V Input
Datasheet
TEN 6-2421N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 500mA, 500mA
Power (Watts) 5 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 80%
Mounting Through Hole
Case / Package 24-DIP Module, 8 Leads
Size / Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number TEN 6
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TEN6-2421N,TEN 6-2421N-ND
Standard Package 10
Win Source Part Number 1335822-TEN 6-2421N
Ultra Librarian 3D Model Ultra Librarian TEN 6-2421N CAD Model

Description

The Traco Power TEN 6-2421N is a DC-DC converter module that features OCP and SCP protection.

  • Features: OCP and SCP protection
  • Applications: Commercial ITE applications
  • Power Output: 5 watts
  • Size: 1.25" L x 0.80" W x 0.40" H
  • Mounting: Through a hole
  • Number of Outputs: Two
  • Maximum Output Current: 500mA each
  • Input Voltage: 18V to 36V
  • Output Voltage: 5V (Output 1), -5V (Output 2)
  • Efficiency: 80%
  • Voltage Isolation: 1.5 kV
  • Operating Temperature: -40°C to 85°C (With Derating)
  • Package: 24-DIP Module, 8 Leads package
  • ECCN: EAR99
  • ROHS Status: ROHS3 compliant
